Removal [07/2022 - ]: Procedure
- PRECAUTION NOTE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.
Refer to INITIALIZATION [07/2022 - ]
- DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to REMOVAL [07/2022 - ]
WARNING:- Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
- If the airbag deploys for any reason, it may cause a serious accident.
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [07/2022 - ]
- REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
- Remove the 2 screws.

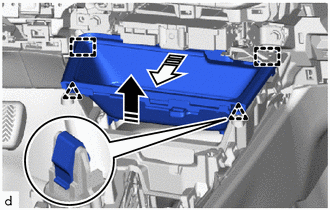

Remove in this Direction (1) Remove in this Direction (2) - Disengage the claws and guide to remove the No. 1 instrument panel under cover sub-assembly as shown in the illustration.
- Disconnect the connector.
- Disengage the claws to remove the DLC3 connector.
- Using a clip remover, disengage the wire harness clamp.
- Remove the 2 screws.
- REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
- DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH
HINT:
Use the same procedure as for the LH side.
See step 9
- REMOVE NO. 2 INSTRUMENT SIDE PANEL
HINT:
Use the same procedure as for the No. 1 instrument side panel.
See step 10
- REMOVE LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY
Refer to PROCEDURE - Step 5
- REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
- REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
- REMOVE GLOVE BOX LIGHT ASSEMBLY
Refer to PROCEDURE - Step 9
- REMOVE GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY
- REMOVE GLOVE COMPARTMENT DOOR CHECK CUSHION
HINT:
Use the same procedure as for the opposite side.
- Disengage the claws to remove the glove compartment door check cushion.
- REMOVE GLOVE COMPARTMENT DOOR LOCK ASSEMBLY
- REMOVE LOWER INSTRUMENT CENTER COVER
- REMOVE LOWER INSTRUMENT PANEL FINISH CENTER PANEL
- REMOVE INSTRUMENT PANEL FINISH PANEL
- REMOVE NO. 1 CONSOLE UPPER PANEL GARNISH
- REMOVE NO. 2 CONSOLE UPPER PANEL GARNISH
- REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
Refer to PROCEDURE - Step 1
- REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY
- REMOVE UPPER CONSOLE BOX
- REMOVE FRONT NO. 1 CONSOLE BOX INSERT
- REMOVE FRONT NO. 2 CONSOLE BOX INSERT

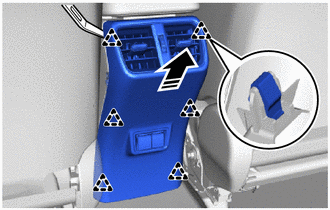

- REMOVE REAR CONSOLE END PANEL SUB-ASSEMBLY
- REMOVE CONSOLE BOX CARPET
- REMOVE REAR CONSOLE BOX ASSEMBLY
