Removal [08/2016 - 03/2018]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Refer to PRECAUTION [08/2016 - 12/2017] , or refer to PRECAUTION [12/2017 - 03/2018]

  2. REMOVE DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 2 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 2 [12/2017 - 08/2019]

  3. REMOVE REAR DECK FLOOR BOX

    Refer to PROCEDURE - Step 4 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 4 [12/2017 - 08/2019]

  4. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 4

  5. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG

    Refer to PROCEDURE - Step 5

  6. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL

    Refer to PROCEDURE - Step 6

  7. REMOVE REAR DOOR ARMREST COVER

    Refer to PROCEDURE - Step 7

  8. REMOVE COURTESY LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 2

  9. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9

  10. REMOVE REAR DOOR INNER GLASS WEATHERSTRIP

    Refer to PROCEDURE - Step 11

  11. REMOVE REAR DOOR NO. 2 TRIM BRACKET

    Refer to PROCEDURE - Step 14

  12. REMOVE REAR DOOR SERVICE HOLE COVER

    Refer to PROCEDURE - Step 15

  13. REMOVE REAR DOOR GLASS RUN

    Refer to PROCEDURE - Step 20

  14. REMOVE REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY

    Refer to PROCEDURE - Step 21

  15. DISCONNECT REAR DOOR WEATHERSTRIP
    1. Disconnect the rear door weatherstrip until the screws of the rear door rear guide seal is visible.
  16. REMOVE REAR DOOR REAR GUIDE SEAL

    Refer to PROCEDURE - Step 22

  17. REMOVE REAR DOOR GLASS SUB-ASSEMBLY

    Refer to PROCEDURE - Step 23

  18. REMOVE REAR DOOR LOCK ASSEMBLY

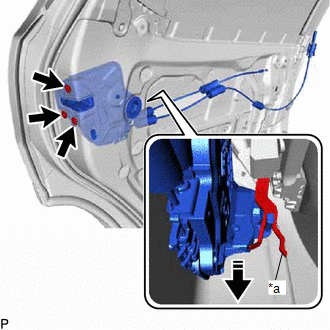

    1. Using a T30 "TORX" socket wrench, remove the 3 screws.
      GTY673845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Release Plate
      Remove in this Direction
    2. Move the rear door lock assembly downward to disconnect it from the release plate of the rear door outside handle frame sub-assembly, and remove the rear door lock assembly.
    3. When reusing the rear door lock assembly:

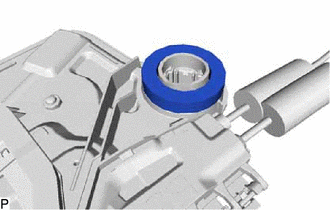

      1. Remove the door lock wiring harness seal from the rear door lock assembly.
        GTY667212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE REAR DOOR LOCK COVER SUB-ASSEMBLY

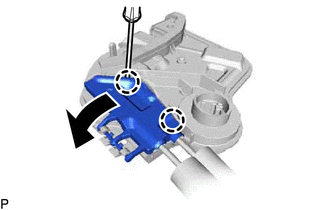

    1. Using a screwdriver, disengage the 2 claws as shown in the illustration.
      GTY667211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

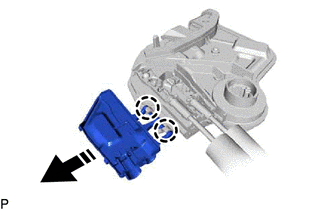

    2. Disengage the 2 claws to remove the rear door lock cover sub-assembly as shown in the illustration.
      GTY653059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  20. REMOVE REAR DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY

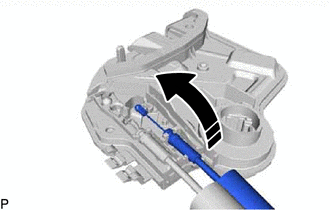

    1. Remove the rear door lock remote control cable assembly as shown in the illustration.
      GTY667302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  21. REMOVE REAR DOOR INSIDE LOCKING CABLE ASSEMBLY

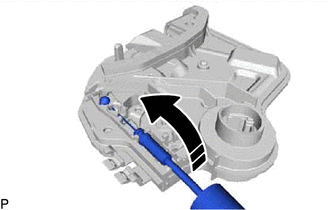

    1. Remove the rear door inside locking cable assembly as shown in the illustration.
      GTY679189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
