Removal [10/2017 - 09/2018]: Procedure

Refer to PRECAUTION [10/2017 - 10/2020]

Refer to UTILITY [10/2017 - ]

Refer to PROCEDURE - Step 2

Refer to REMOVAL [10/2017 - 09/2018]

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

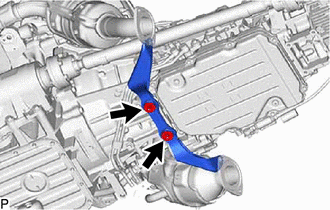

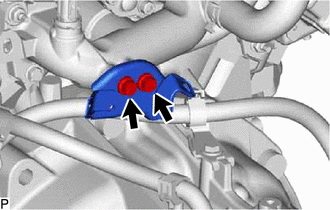

   Remove the 2 bolts and No. 1 exhaust pipe support bracket sub-assembly.

Refer to PROCEDURE - Step 17

Refer to PROCEDURE - Step 37

Refer to PROCEDURE - Step 39

Refer to PROCEDURE - Step 3

Refer to PROCEDURE - Step 5

See step  5

See step  5

1. Disconnect the 6 wire harness connectors.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Wire Harness Connector

   Bolt

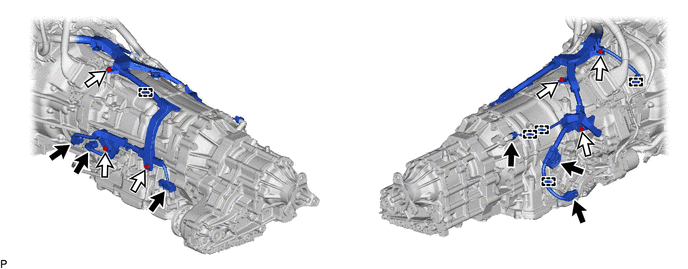

2. Remove the 6 bolts and disconnect the 5 wire harness clamps from the hybrid vehicle transmission assembly.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

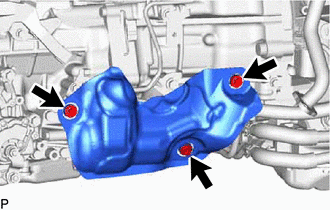

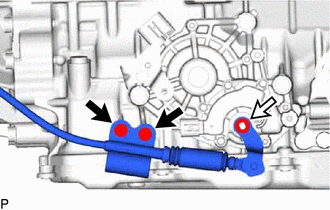

   Remove the 3 bolts and transmission oil pump insulator.

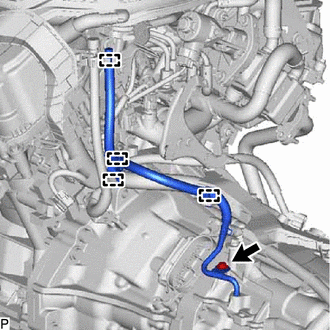

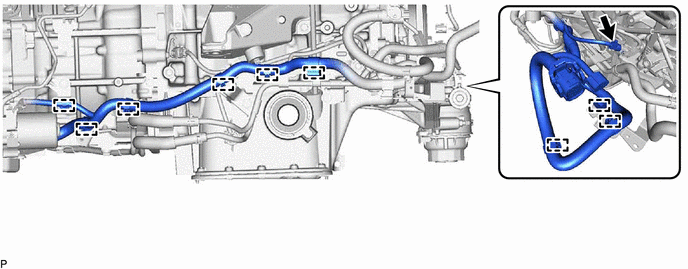

1. Disconnect the 4 clamps.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the bolt and No. 2 transmission breather assembly.

3. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove the O-ring from the No. 2 transmission breather assembly.

1. Disconnect the 3 clamps.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the 2 bolts and No. 1 transmission breather assembly.

3. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

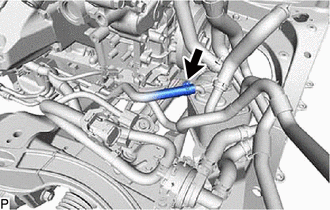

   Slide the clip and remove the transmission breather hose from the No. 1 transmission breather assembly.

1. Remove the bolt and engine motor cable clamp bracket.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

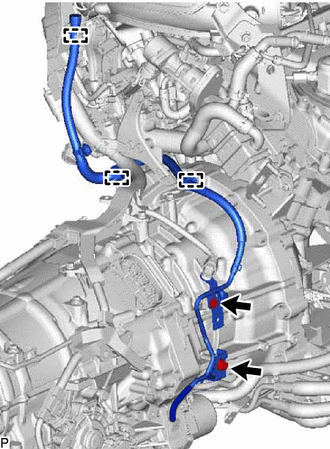

2. Remove the 2 bolts and engine motor cable clamp bracket.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

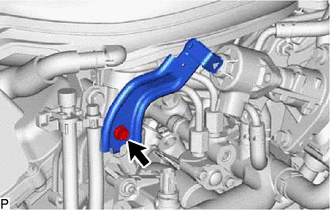

3. Remove the bolt and engine motor cable clamp bracket.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

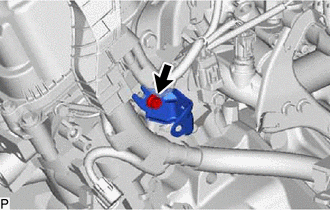

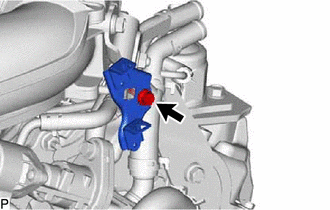

   Remove the bolt and wire harness clamp bracket.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Slide the clip and disconnect the No. 2 oil cooler inlet hose from the motor cooling cooler.

2. Disconnect the oil pump thermistor connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Disconnect the 9 wire harness clamps.

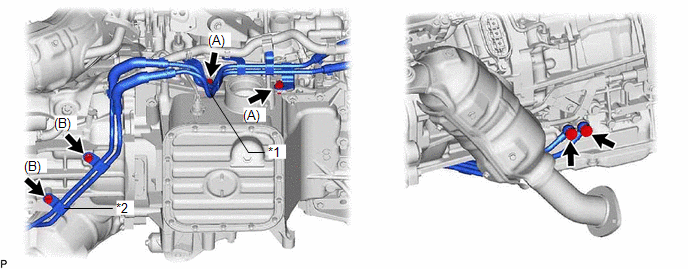

4. Remove the 2 bolts (A), and disconnect the oil cooler without hose tube sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1

   Oil Cooler without Hose Tube Sub-assembly

   *2

   Oil Cooler Union Sub-assembly

5. Remove the 2 union bolts, 4 gaskets, 2 bolts (B) and oil cooler union sub-assembly.
6. Slide the clip and remove the No. 2 oil cooler inlet hose from the oil cooler without hose tube sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

7. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Slide the clip and remove the No. 2 oil cooler outlet hose from the oil cooler without hose tube sub-assembly.

8. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Slide the 2 clips and remove the No. 1 oil cooler inlet hose from the oil cooler without hose tube sub-assembly and oil cooler union sub-assembly.

9. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Slide the 2 clips and remove the No. 1 oil cooler outlet hose from the oil cooler without hose tube sub-assembly and oil cooler union sub-assembly.

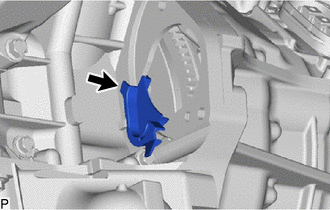

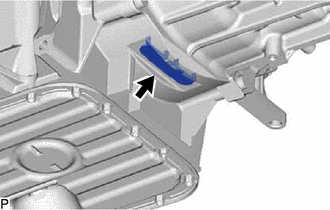

1. Remove the 2 bolts and starter hole insulator.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the flywheel housing side cover from the engine assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the flywheel housing under cover from the engine assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the nut, spring washer and 2 bolts and disconnect the No. 2 parking lock release cable assembly from the shift control actuator assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Bolt
   	Nut and Spring Washer

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove the 3 nuts and engine rear mounting member.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

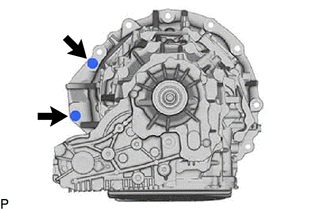

   Remove the 4 bolts and rear engine mounting insulator.

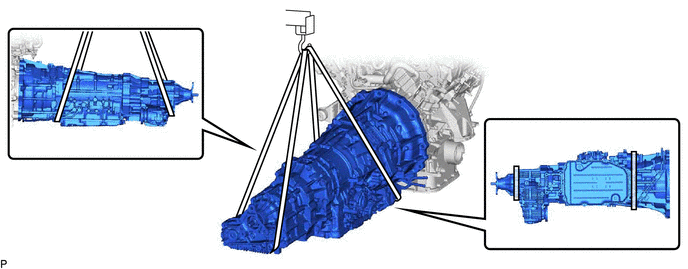

1. Using a rope or equivalent, support the hybrid vehicle transmission assembly at the positions shown in the illustration.
   WARNING:

   Secure the engine assembly to the engine lifter using a belt, etc. to prevent it from falling.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

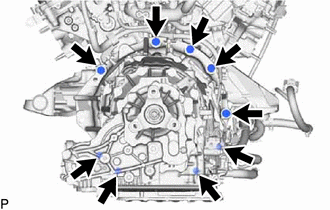

2. Remove the 9 bolts and hybrid vehicle transmission assembly from the engine assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   WARNING:

   • Do not raise the hybrid vehicle transmission assembly more than necessary.
   • Make sure to confirm the center of the gravity of the hybrid vehicle transmission assembly when supporting it.
   NOTE:

   Do not use excessive force to pry out the hybrid vehicle transmission assembly when separating it from the engine assembly to prevent the knock pins from being damaged.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

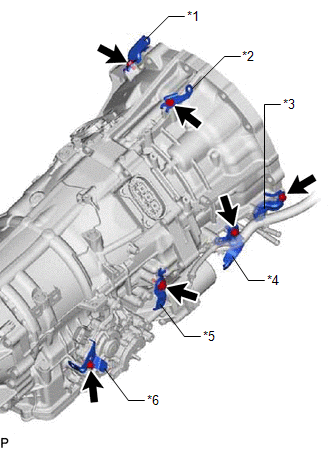

   *1	No. 3 Wiring Harness Clamp Bracket
   *2	No. 2 Wiring Harness Clamp Bracket
   *3	Wiring Harness Clamp Bracket
   *4	No. 1 Wiring Harness Clamp Bracket
   *5	Transmission Oil Pump Insulator Bracket
   *6	No. 2 Heat Insulator Bracket

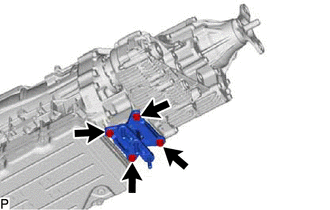

   Remove the 6 bolts and 6 brackets.

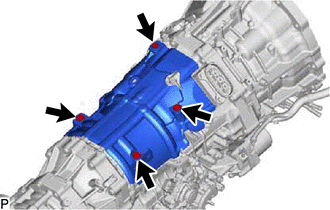

1. Remove the 4 bolts and automatic transmission case cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to REMOVAL [10/2017 - ]
