Removal [10/2020 - 10/2022]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [10/2020 - 11/2021] , or refer to BEFORE DISCONNECTING BATTERY [11/2021 - 10/2022]

  2. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 24 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 24 [11/2021 - 10/2022]

  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 4 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 4 [11/2021 - 10/2022]

  4. REMOVE LUGGAGE COMPARTMENT FLOOR MAT

    Refer to PROCEDURE - Step 24 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 24 [11/2021 - 10/2022]

  5. REMOVE LUGGAGE COMPARTMENT TRIM COVER LH

    Refer to PROCEDURE - Step 26 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 26 [11/2021 - 10/2022]

  6. REMOVE LUGGAGE COMPARTMENT TRIM COVER RH

    Refer to PROCEDURE - Step 27 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 27 [11/2021 - 10/2022]

  7. REMOVE TOOL BOX

    Refer to PROCEDURE - Step 28 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 28 [11/2021 - 10/2022]

  8. REMOVE INNER LOWER LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 29 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 29 [11/2021 - 10/2022]

  9. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER (w/o Advanced Drive)

    Refer to PROCEDURE - Step 30 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 30 [11/2021 - 10/2022]

  10. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER (w/ Advanced Drive)

    HINT:

    Use the same procedure described for the front luggage compartment trim cover (w/o Advanced Drive).

  11. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  12. REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER (w/o Advanced Drive)

    Refer to PROCEDURE - Step 33 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 33 [11/2021 - 10/2022]

  13. REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER (w/ Advanced Drive)

    HINT:

    Use the same procedure described for the rear luggage compartment trim cover (w/o Advanced Drive).

  14. REMOVE ROPE HOOK ASSEMBLY

    Refer to PROCEDURE - Step 10 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 10 [11/2021 - ]

  15. REMOVE REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 11 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 11 [11/2021 - ]

  16. REMOVE SIDE TRIM BOX

    Refer to PROCEDURE - Step 16 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 16 [11/2021 - 10/2022]

  17. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY RH

    Refer to PROCEDURE - Step 17 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 17 [11/2021 - 10/2022]

  18. REMOVE TIRE PRESSURE WARNING ECU AND RECEIVER

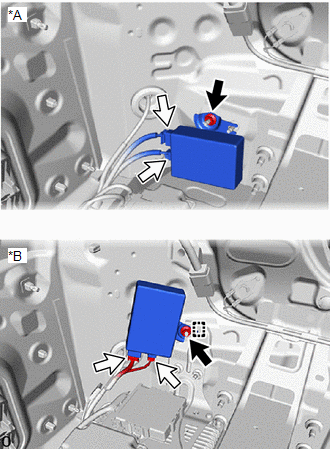

    1. Remove the nut.
      GTY968898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/o Advanced Park
      *B w/ Advanced Park
      Nut
      Connector
    2. w/o Advanced Park:
      1. Disconnect the 2 connectors and remove the tire pressure warning ECU and receiver.
    3. w/ Advanced Park:
      1. Detach the guide and remove the tire pressure warning ECU and receiver.
      2. Disconnect the 2 connectors.
        NOTE:
        • Do not subject the tire pressure warning ECU and receiver to strong impacts or force, and do not drop it.
        • If the removed nut is the same shape as that shown in the illustration, replace it the supplied replacement part.
          GTY833118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
