Removal [10/2017 - ]: Procedure

  1. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

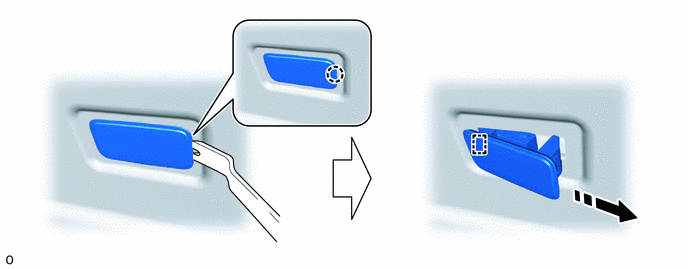

    1. Using moulding remover B, insert it between the No. 1 luggage compartment light assembly and front luggage compartment trim cover to detach the claw.
    2. Pull out the No. 1 luggage compartment light assembly to detach the hook.
      GTY830791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -

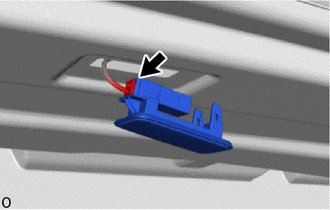

    3. GTY809644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disconnect the connector and remove the No. 1 luggage compartment light assembly.

  2. REMOVE NO. 2 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

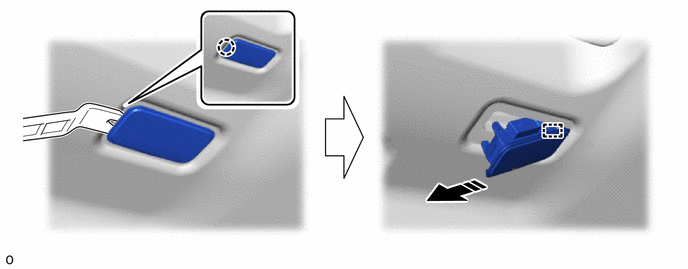

    1. Using moulding remover B, insert it between the No. 2 luggage compartment light assembly and luggage compartment door cover to detach the claw.
    2. Pull out the No. 2 luggage compartment light assembly to detach the hook.
      GTY785526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
    3. GTY809642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disconnect the connector and remove the No. 2 luggage compartment light assembly.
