Installation [10/2023 - ]: Procedure
- INSTALL RACK AND PINION POWER STEERING GEAR ASSEMBLY
- Install the rack and pinion power steering gear assembly with the 3 bolts and nut.
Torque: 82.6 N.m (842 kgf/cm, 61 ft.lbf)
- Connect the connector (B) of the motor compartment main wire to the rack and pinion power steering gear assembly.

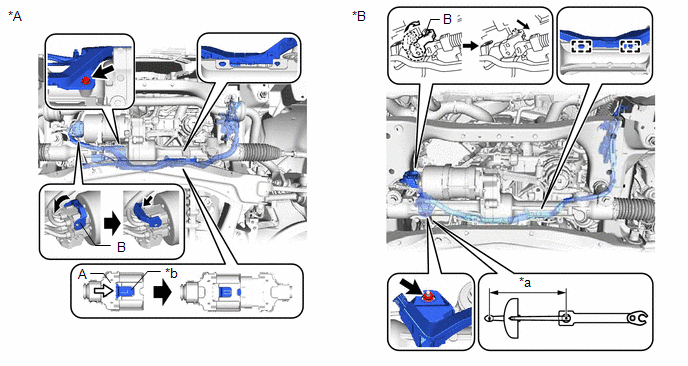

*A w/ Advanced Drive *B w/o Advanced Drive *a Torque Wrench Fulcrum Length *b Green Lock Slide - - HINT:

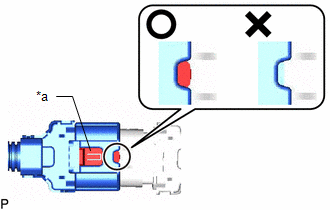

Connect the connector with the lock lever by first inserting the connector (B) as far as it will go, moving the lock lever as shown in the illustration and then pushing in the lock.
- w/ Advanced Drive:
- Connect the connector (A), and slide the green lock to lock it as shown in the illustration.
- Attach the 2 clamps.
- w/ Advanced Drive:
- Connect the wire harness clamp to the rack and pinion power steering gear assembly with the bolt.
Torque: 9.0 N.m (92 kgf/cm, 80 in.lbf)
- Connect the wire harness clamp to the rack and pinion power steering gear assembly with the bolt.
- w/o Advanced Drive:
- Using a SST and union nut wrench, Connect the wire harness clamp to the rack and pinion power steering gear assembly with the nut.
Specified tightening torque
Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
- SST: 09961-00950
HINT:
- Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.
Refer to PRECAUTION [10/2023 - ]
- When using a union nut wrench (fulcrum length of 22 mm (0.866 in.)) + SST (fulcrum length of 150 mm (5.906 in.)) + torque wrench (fulcrum length of 300 mm (11.811 in.)): 6.4 N.m (65 kgf/cm, 57 in.lbf)
- Using a SST and union nut wrench, Connect the wire harness clamp to the rack and pinion power steering gear assembly with the nut.
- Install the rack and pinion power steering gear assembly with the 3 bolts and nut.
- CONNECT TIE ROD ASSEMBLY LH
- Connect the tie rod assembly LH to the front lower ball joint assembly with the nut.
Torque: 60 N.m (612 kgf/cm, 44 ft.lbf)
- Install a new clip.NOTE:
Further tighten the nut up to 60° if the holes for the clip are not aligned.
- Connect the tie rod assembly LH to the front lower ball joint assembly with the nut.
- CONNECT TIE ROD ASSEMBLY RH
HINT:
Perform the same procedure as for the LH side.
- CONNECT NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY
- INSTALL FRONT STABILIZER BAR
Refer to INSTALLATION [10/2023 - ]
- INSTALL TRANSMISSION OIL COOLER BRACKET
Refer to INSTALLATION [10/2017 - ]
- INSTALL STRUT BAR BRACKET SUPPORT SUB-ASSEMBLY
Refer to PROCEDURE - Step 113
- INSTALL FRONT SUSPENSION MEMBER BRACE
Refer to PROCEDURE - Step 114
- INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY
Refer to PROCEDURE - Step 115
- INSTALL TRANSMISSION UNDER COVER
Refer to PROCEDURE - Step 116
- INSTALL NO. 1 ENGINE UNDER COVER ASSEMBLY
Refer to PROCEDURE - Step 117
- INSTALL FRONT WHEELS
Refer to INSTALLATION [10/2023 - ]
- ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
- CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to PROCEDURE - Step 2
- INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
Refer to PROCEDURE - Step 13
- INSPECT AND ADJUST FRONT WHEEL ALIGNMENT
Refer to ADJUSTMENT [10/2023 - ]
- UPDATE ECU SECURITY KEY
- If the rack and pinion power steering gear assembly has been replaced, perform update ECU security key.
Refer to UPDATE ECU SECURITY KEY [10/2020 - ]
- If the rack and pinion power steering gear assembly has been replaced, perform update ECU security key.
- ECU CONFIGURATION
- If the rack and pinion power steering gear assembly has been replaced, perform ECU configuration.
Refer to ECU CONFIGURATION [10/2023 - ]
- If the rack and pinion power steering gear assembly has been replaced, perform ECU configuration.
- POWER STEERING ECU INITIAL SETTING
Refer to UTILITY [10/2023 - ]
- INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL
Refer to WORK PROCEDURE [10/2022 - ]
HINT:
When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.
