Installation [10/2023 - ]: Procedure

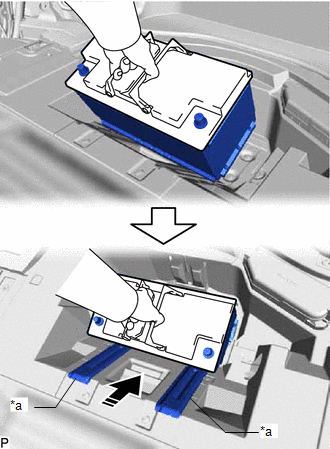

1. Lower the auxiliary battery along the slope to install it as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Auxiliary battery installation direction
   *a	Slope

   NOTE:

   As the auxiliary battery is very heavy, handle it with caution. If it is dropped or subjected to any strong impacts, replace it with a new one.

2. Install the auxiliary battery.
3. Connect the battery hose to the auxiliary battery.
   NOTE:

   After replacing the auxiliary battery, install the ventilation hole plug supplied with the new auxiliary battery or the ventilation hole plug from the old auxiliary battery to the ventilation hole on the side to which the battery hose is not connected.

4. Install the battery clamp sub-assembly with the 2 nuts.

   Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

5. Connect the cable to the positive (+) auxiliary battery terminal and tighten the nut.

   Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

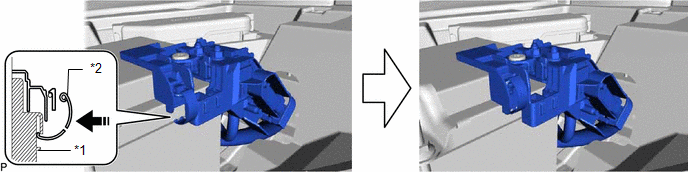

6. Connect the clamp spring assembly of the positive (+) auxiliary battery terminal to the auxiliary battery as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Auxiliary Battery	*2	Clamp Spring Assembly
   	Push the clamp spring assembly in this direction	-	-

7. Attach the claw to connect the auxiliary battery terminal cap.

1. Connect the cable to the negative (-) auxiliary battery terminal and tighten the nut.

   w/ Front LiDAR Sensor

   Torque: 6.4 N.m (65 kgf/cm, 57 in.lbf)

   w/o Front LiDAR Sensor

   Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

1. Install the tool box.

Refer to PROCEDURE - Step 13

Refer to WORK PROCEDURE [10/2022 - ]

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Refer to AUTOMATIC LEARNING CHART [10/2023 - ]
