Installation [11/2021 - ]: Procedure

INSTALL NO. 1 CONVERTER BRACKET

NOTE:

When removing and reinstalling the converter bracket, do not place loads on the AMD bolt, connector, fins, or breather plug.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Align the No. 1 converter bracket positioning hole with the DC/DC converter assembly positioning pin, and rotate in the direction shown in the illustration to align with the bolt hole.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Positioning Pin/Hole

Tighten the 2 bolts in the order shown in the illustration to install the No. 1 converter bracket.

Fig 1: No. 1 Converter Bracket Bolts Tightening Sequence
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

INSTALL NO. 2 CONVERTER BRACKET

NOTE:

When removing and reinstalling the converter bracket, do not place loads on the AMD bolt, connector, fins, or breather plug.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Align the No. 2 converter bracket positioning hole with the DC/DC converter assembly positioning pin, and rotate in the direction shown in the illustration to align with the bolt hole.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Positioning Pin/Hole

Tighten the 2 bolts in the order shown in the illustration to install the No. 2 converter bracket.

Fig 2: No. 2 Converter Bracket Bolts Tightening Sequence
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

INSTALL DC/DC CONVERTER ASSEMBLY W/BRACKET

WARNING:

Wear insulated gloves.

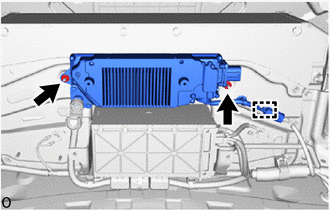

Install the DC/DC converter assembly w/bracket with the 2 bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

Engage the clamp.

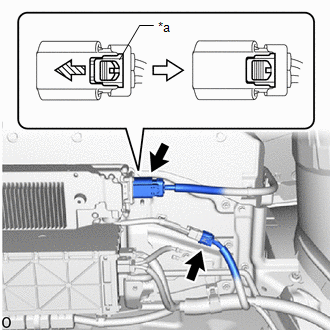

Connect the connector and slide the green-colored lock as shown in the illustration to lock it securely.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Green-colored Lock
	Slide

Connect the connector.

CONNECT NO. 3 FLOOR WIRE

WARNING:

Wear insulated gloves.

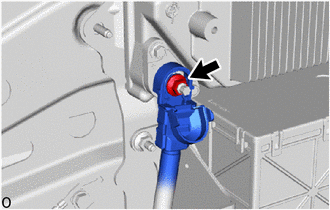

Connect the No. 3 floor wire to the DC/DC converter assembly with the nut.

Torque: 18 N.m (184 kgf/cm, 13 ft.lbf)

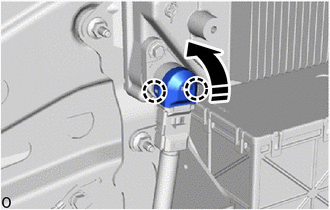

Engage the claw to close the No. 3 floor wire terminal cover.

Install in this Direction

INSTALL DC/DC CONVERTER COOLING EXHAUST DUCT
Refer to PROCEDURE - Step 1
INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER
HINT:

Use the same procedure described for the front luggage compartment trim cover (w/o Advanced Drive).

Refer to PROCEDURE - Step 7 [11/2021 - 10/2023] , or refer to PROCEDURE - Step 7 [10/2023 - ]
INSTALL LUGGAGE COMPARTMENT TRIM COVER LH
Refer to PROCEDURE - Step 11 [11/2021 - 10/2023] , or refer to PROCEDURE - Step 11 [10/2023 - ]
INSTALL LUGGAGE COMPARTMENT TRIM COVER RH
Refer to PROCEDURE - Step 12 [11/2021 - 10/2023] , or refer to PROCEDURE - Step 12 [10/2023 - ]
INSTALL LUGGAGE COMPARTMENT FLOOR MAT
Refer to PROCEDURE - Step 14 [11/2021 - 10/2023] , or refer to PROCEDURE - Step 14 [10/2023 - ]
INSTALL SERVICE PLUG GRIP
Refer to INSTALLATION [10/2020 - ]
CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to PROCEDURE - Step 1 [10/2020 - 10/2023] , or refer to PROCEDURE - Step 1 [10/2023 - ]
INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
Refer to PROCEDURE - Step 13 [11/2021 - 10/2023] , or refer to PROCEDURE - Step 13 [10/2023 - ]
INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL
Refer to WORK PROCEDURE [11/2021 - 10/2022] , or refer to WORK PROCEDURE [10/2022 - ]

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Refer to AUTOMATIC LEARNING CHART [11/2021 - 10/2023] , or refer to AUTOMATIC LEARNING CHART [10/2023 - ]
