Installation [11/2021 - ]: Procedure

INSTALL DC/DC CONVERTER COOLING EXHAUST DUCT

WARNING:

Wear insulated gloves.

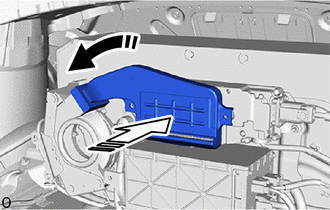

Temporarily install the DC/DC converter cooling exhaust duct as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Install in this Direction (1)
	Install in this Direction (2)

Install the DC/DC converter cooling exhaust duct with the 2 bolts.
Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER
HINT:

Use the same procedure described for the front luggage compartment trim cover (w/o Advanced Drive).

Refer to PROCEDURE - Step 7 [11/2021 - 10/2023] , or refer to PROCEDURE - Step 7 [10/2023 - ]
INSTALL LUGGAGE COMPARTMENT TRIM COVER LH
Refer to PROCEDURE - Step 11 [11/2021 - 10/2023] , or refer to PROCEDURE - Step 11 [10/2023 - ]
INSTALL LUGGAGE COMPARTMENT TRIM COVER RH
Refer to PROCEDURE - Step 12 [11/2021 - 10/2023] , or refer to PROCEDURE - Step 12 [10/2023 - ]
INSTALL LUGGAGE COMPARTMENT FLOOR MAT
Refer to PROCEDURE - Step 14 [11/2021 - 10/2023] , or refer to PROCEDURE - Step 14 [10/2023 - ]
INSTALL SERVICE PLUG GRIP
Refer to INSTALLATION [10/2020 - ]
CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to INSTALLATION [10/2020 - 10/2023] , or refer to INSTALLATION [10/2023 - ]
INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
Refer to PROCEDURE - Step 13 [11/2021 - 10/2023] , or refer to PROCEDURE - Step 13 [10/2023 - ]
INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL
Refer to WORK PROCEDURE [11/2021 - 10/2022] , or refer to WORK PROCEDURE [10/2022 - ]

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Refer to AUTOMATIC LEARNING CHART [11/2021 - 10/2023] , or refer to AUTOMATIC LEARNING CHART [10/2023 - ]
