Removal [10/2020 - 11/2021]: Procedure
- AIR SUSPENSION CONTROL PROHIBITED (w/ Air Suspension)
Refer to PRECAUTION [10/2017 - ]
- REMOVE RADIATOR COVER PLATE
Refer to PROCEDURE - Step 1
- REMOVE UPPER RADIATOR SUPPORT SEAL
Refer to PROCEDURE - Step 2
- REMOVE LOWER RADIATOR AIR DEFLECTOR
Refer to PROCEDURE - Step 3
- REMOVE OIL PAN PROTECTOR
- for 2WD:
Refer to PROCEDURE - Step 7
- for AWD:
Refer to PROCEDURE - Step 8
- for 2WD:
- RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM
Refer to PROCEDURE - Step 4
- DRAIN COOLANT (for Inverter)
Refer to PROCEDURE - Step 6
- REMOVE POP UP HOOD LIFTER ASSEMBLY LH
Refer to REMOVAL [10/2020 - 11/2021]
- REMOVE HEADLIGHT ASSEMBLY RH
HINT:
Use the same procedure described for the headlight assembly LH.
Refer to REMOVAL [10/2020 - 11/2021]
- REMOVE NO. 1 AIR CLEANER INLET
Refer to PROCEDURE - Step 8
- REMOVE HOOD LOCK RELEASE LEVER PROTECTOR
- REMOVE ENGINE HOOD COURTESY SWITCH (HOOD LOCK ASSEMBLY)
Refer to PROCEDURE - Step 3

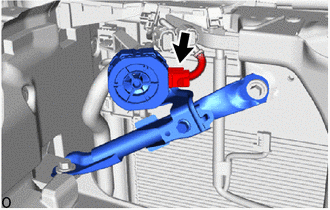

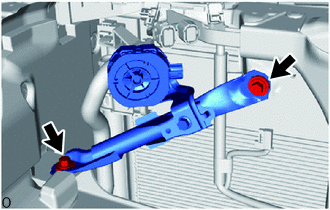

- REMOVE HIGH PITCHED HORN ASSEMBLY
Refer to PROCEDURE - Step 3
- REMOVE LOW PITCHED HORN ASSEMBLY
Refer to PROCEDURE - Step 4

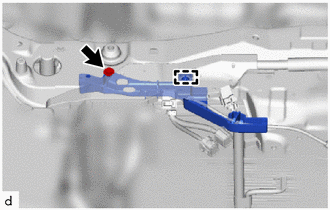

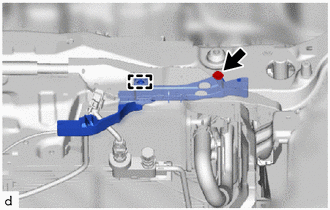

- REMOVE LOWER ARM BRACKET BRACE SUB-ASSEMBLY RH
- REMOVE LOWER ARM BRACKET BRACE SUB-ASSEMBLY LH

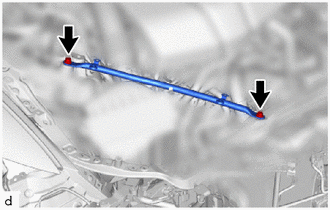

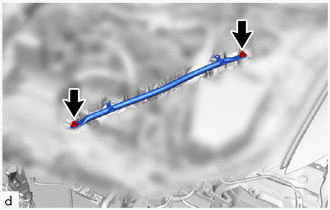

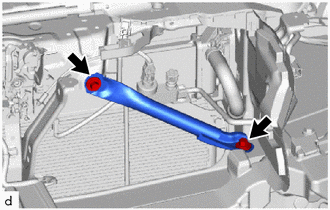

- REMOVE RADIATOR SUPPORT TO CROSSMEMBER BRACE SUB-ASSEMBLY RH
- REMOVE RADIATOR SUPPORT TO CROSSMEMBER BRACE SUB-ASSEMBLY LH

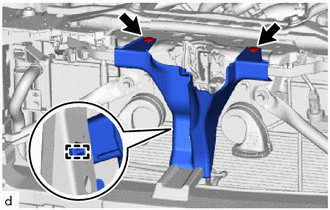

- REMOVE UPPER RADIATOR SUPPORT SUB-ASSEMBLY

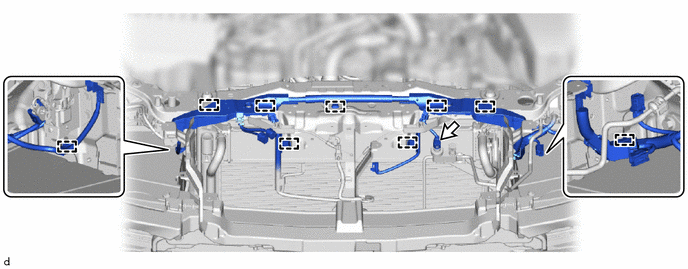

- Disconnect the connector.
- Detach the clamp and disconnect the engine room main wire.
Remove the screw.
- Detach the clamp and disconnect the hood lock control cover LH.
- Remove the screw.
- Detach the clamp and disconnect the hood lock control cover RH.
- Detach the clamp.

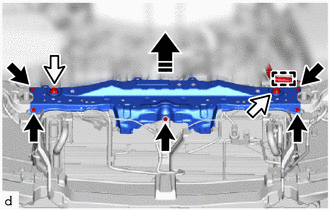

Remove in this Direction Bolt Sub-Radiator Support Cushion - Remove the 5 bolts.
- While lifting the upper radiator support sub-assembly upwards, detach the 2 sub-radiator support cushions and remove the upper radiator support sub-assembly.NOTE:
When disconnecting the upper radiator support sub-assembly, do not damage the cooler condenser assembly, radiator assembly (for inverter coolant) and radiator assembly.
- Disconnect the connector.

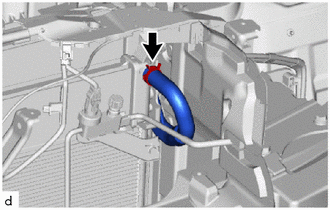

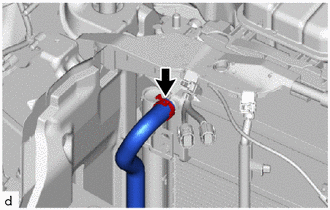

- DISCONNECT NO. 2 INVERTER COOLING HOSE
- DISCONNECT NO. 3 INVERTER COOLING HOSE

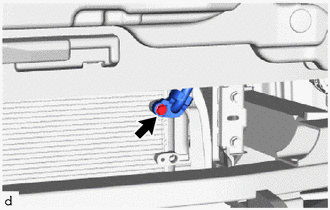

- DISCONNECT LIQUID TUBE SUB-ASSEMBLY A

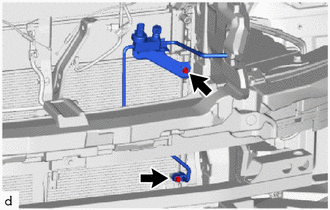

- Remove the 2 bolts and disconnect liquid tube sub-assembly A and No. 1 cooler bracket from the cooler condenser assembly.NOTE:
Do not apply excessive force to the liquid tube sub-assembly A.
- Remove the O-ring from the liquid tube sub-assembly A.NOTE:
Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.
- Remove the 2 bolts and disconnect liquid tube sub-assembly A and No. 1 cooler bracket from the cooler condenser assembly.
- DISCONNECT DISCHARGE HOSE SUB-ASSEMBLY
- Remove the bolt and disconnect the discharge hose sub-assembly from the cooler condenser assembly.NOTE:
Do not apply excessive force to the discharge hose sub-assembly.
- Remove the O-ring from the discharge hose sub-assembly.NOTE:
Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.
- Remove the bolt and disconnect the discharge hose sub-assembly from the cooler condenser assembly.
- REMOVE COOLER CONDENSER ASSEMBLY

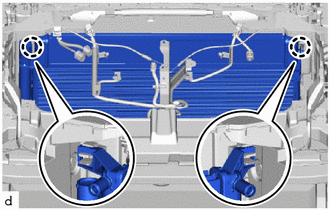

- Detach the claw.

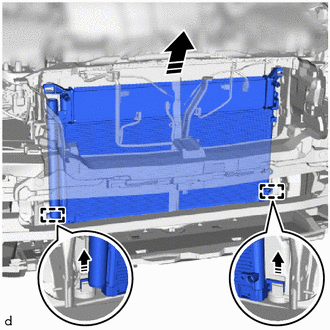

- While lifting the cooler condenser assembly in the direction of the arrow shown in the illustration, detach the guide and remove the cooler condenser assembly and radiator assembly (for inverter coolant).
Remove in this Direction NOTE:- When removing the cooler condenser assembly and radiator assembly (for inverter coolant), do not damage the cooler condenser assembly, radiator assembly (for inverter coolant) and radiator assembly.
- Prepare a drain pan or cloth in case the coolant leaks.

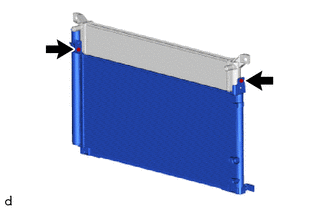

- Remove the 2 bolts and the radiator assembly (for inverter coolant) from the cooler condenser assembly.
- Detach the claw.
