Removal [10/2020 - 11/2021]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [10/2020 - 11/2021]

  2. REMOVE HOOD LOCK RELEASE LEVER PROTECTOR

    Refer to PROCEDURE - Step 2

  3. REMOVE HIGH PITCHED HORN ASSEMBLY

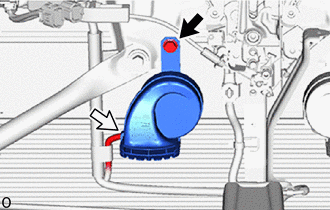

    1. GTY779386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Connector

      Remove the bolt and high pitched horn assembly.

    2. Disconnect the connector.
  4. REMOVE LOW PITCHED HORN ASSEMBLY
    1. Remove the bolt and low pitched horn assembly.

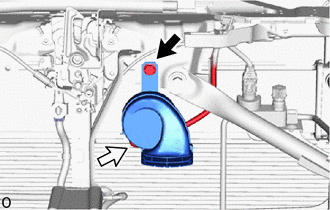

      GTY810109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Connector
    2. Disconnect the connector.
