Removal [11/2021 - 10/2022]: Procedure

AIR SUSPENSION CONTROL PROHIBITED (w/ Air Suspension)
Refer to PRECAUTION [10/2017 - ]
REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY (for AWD)
Refer to PROCEDURE - Step 23
REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY (for AWD)
Refer to PROCEDURE - Step 25
REMOVE STRUT BAR BRACKET SUPPORT SUB-ASSEMBLY (for AWD)
Refer to PROCEDURE - Step 27
DISCONNECT BRAKE BOOSTER PUMP CONNECTOR (w/o Advanced Park)
Refer to PROCEDURE - Step 3
DISABLE BRAKE CONTROL (w/ Advanced Park)
Refer to PROCEDURE - Step 2
REMOVE FRONT WHEEL
Refer to PROCEDURE - Step 2
DISCONNECT FRONT SPEED SENSOR WIRE
Refer to PROCEDURE - Step 8
DISCONNECT DISC BRAKE CYLINDER ASSEMBLY
- for 6-Pot Caliper:
  Refer to PROCEDURE - Step 7
- except 6-Pot Caliper:
  Refer to PROCEDURE - Step 8
REMOVE FRONT DISC LH
- for 6-Pot Caliper:
  Refer to PROCEDURE - Step 8
- except 6-Pot Caliper:
  Refer to PROCEDURE - Step 9
INSTALL FRONT AXLE SHAFT LH NUT
Refer to PROCEDURE - Step 11
REMOVE FRONT DISC BRAKE DUST COVER LH
Refer to PROCEDURE - Step 12
DISCONNECT TIE ROD ASSEMBLY LH
Refer to PROCEDURE - Step 2

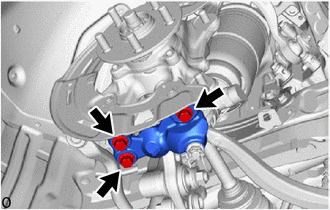

LOOSEN FRONT SUSPENSION LOWER ARM ASSEMBLY LH

Loosen the 3 bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE STEERING KNUCKLE LH

Remove the 3 bolts and steering knucle LH.

REMOVE FRONT AXLE HUB SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 17
REMOVE DISC BRAKE AIR GUIDE PLATE
1. Remove the disc brake air guide plate from the steering knuckle LH.
