Removal [10/2017 - ]: Procedure

  1. REMOVE VANITY MIRROR ASSEMBLY
    1. Push the vanity mirror assembly towards the outside of the vehicle.

      HINT:

      Maintain the position pushed out towards the outside of the vehicle.

      GTY966167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Push Direction
    2. Insert moulding remover D as shown in the illustration and detach the claw towards the bottom of the vehicle.
      GTY966037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Claw
      *b Moulding Remover D

      HINT:

      Align moulding remover D with the vanity mirror assembly and insert it so that it is perpendicular to the mirror.

    3. Detach the claw.

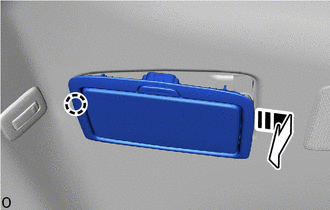

      GTY966257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    4. Pull in the direction indicated by the arrow shown in the illustration to detach the guide and remove the vanity mirror assembly.
      GTY796175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    5. Disconnect the connector.
      GTY781347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
