Removal [10/2017 - 10/2020]: Procedure

  1. REMOVE FRONT ROOF TOP GARNISH

    Refer to PROCEDURE - Step 46 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 46 [09/2018 - 10/2020]

  2. REMOVE MAP LIGHT ASSEMBLY

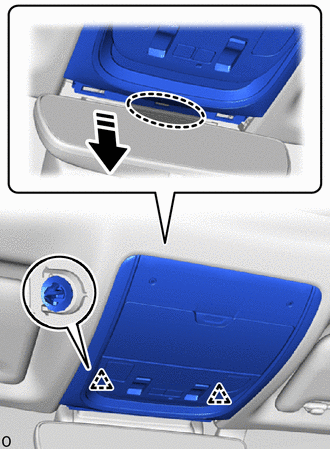

    1. lace your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the clip.
      GTY781858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place hand here
      Remove in this Direction
    2. Place both hands at the position shown in the illustration and pull in the removal direction (1) to detach the clip.
      GTY830275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place hands here
      Remove in this Direction (1)
      Remove in this Direction (2)
    3. Pull in the removal direction (2) to detach the guide and remove the map light assembly.
    4. Disconnect the 2 connectors.
      GTY824083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
