Removal [10/2017 - ]: Procedure

  1. REMOVE REAR CONSOLE END PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6 [10/2017 - 10/2020] , or refer to PROCEDURE - Step 6 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 6 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 6 [10/2023 - ]

  2. REMOVE DISC PLAYER ASSEMBLY WITH BRACKET

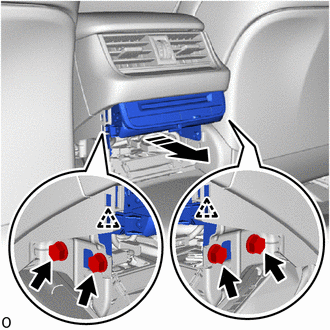

    1. Remove the 4 bolts.
      GTY832213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Remove in this Direction
    2. As shown in the illustration, detach the 2 clips and pull out the disc player assembly with bracket in the direction indicated by the arrow.

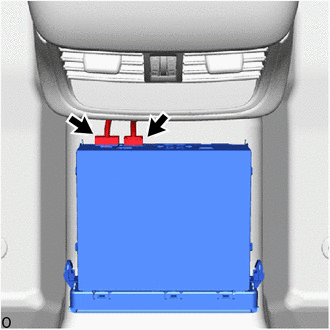

    3. Disconnect the 2 connectors and remove the disc player assembly with bracket.
      GTY803275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 1 DISC PLAYER BRACKET
    1. Remove the 2 screws and No. 1 disc player bracket.
      GTY812702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 2 DISC PLAYER BRACKET
    1. Remove the 2 screws and No. 2 disc player bracket.
      GTY812703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE DISC PLAYER ASSEMBLY
