Removal [10/2017 - ]: Procedure

CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM
Refer to PROCEDURE - Step 2 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 2 [09/2018 - 09/2019] , or refer to PROCEDURE - Step 2 [09/2019 - 10/2020] , or refer to PROCEDURE - Step 2 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 2 [11/2021 - 10/2022] , or refer to PROCEDURE - Step 2 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 2 [10/2023 - ]
REMOVE LOWER STEERING COLUMN COVER
Refer to PROCEDURE - Step 2 [10/2017 - 10/2020] , or refer to PROCEDURE - Step 2 [10/2020 - ]
REMOVE UPPER STEERING COLUMN COVER
Refer to PROCEDURE - Step 3 [10/2017 - 10/2020] , or refer to PROCEDURE - Step 3 [10/2020 - ]

REMOVE TURN SIGNAL SWITCH

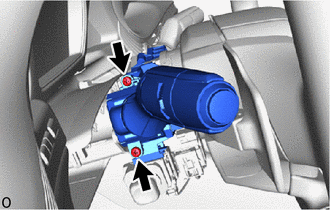

Remove the 2 screws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

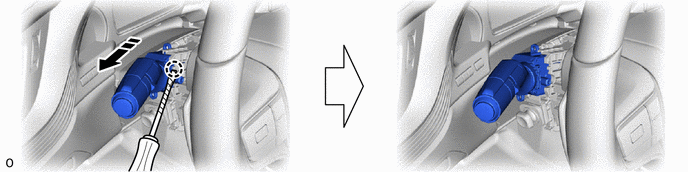

Using a screwdriver, detach the claw and remove the turn signal switch.

HINT:

Tape the screwdriver tip before use.

Protective Tape

Remove in this Direction
