Removal [10/2017 - 10/2020]: Procedure

CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM SETTINGS
Refer to PROCEDURE - Step 2 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 2 [09/2018 - 09/2019] , or refer to PROCEDURE - Step 2 [09/2019 - 10/2020]

REMOVE LOWER STEERING COLUMN COVER

NOTE:

If the removal procedures are followed incorrectly, the part may become damaged.

Turn the steering wheel assembly 90° to the right from the straight condition and remove the screw shown in the illustration.

GTY800137

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Turn the steering wheel assembly 90° to the left from the straight condition and remove the screw shown in the illustration.

GTY800132

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the screw.

GTY832738

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Push from both left and right sides to detach the claw as shown in the illustration.

GTY824494

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Push in this Direction

Detach the claw.

GTY800136

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Pull in the direction of the arrow shown in the illustration and remove the lower steering column cover, taking care not to catch the tilt and telescopic switch.

GTY804554

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

REMOVE UPPER STEERING COLUMN COVER

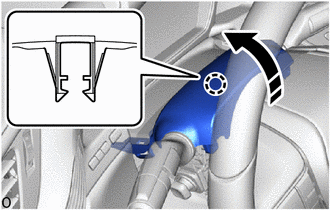

Detach the claw and disconnect the upper steering column cover.

GTY801809

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

Detach the clip and remove the upper steering column cover from the meter hood spacer.

GTY800094

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY

Using a screwdriver with its tip wrapped with protective tape, detach the claw and remove the windshield wiper switch assembly.

GTY817016

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Remove in this Direction
	Protective Tape

NOTE:

Do not damage the claw.
