Removal [10/2020 - ]: Procedure

Refer to PROCEDURE - Step 2 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 2 [11/2021 - 10/2022] , or refer to PROCEDURE - Step 2 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 2 [10/2023 - ]

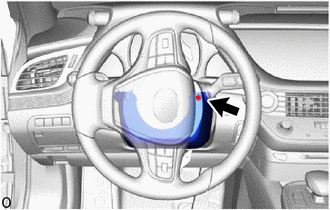

1. Turn the steering wheel assembly 90° to the right from the straight condition and remove the screw shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

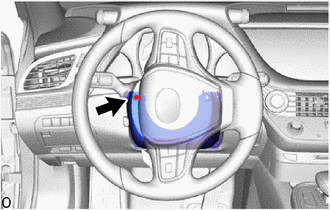

2. Turn the steering wheel assembly 90° to the left from the straight condition and remove the screw shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

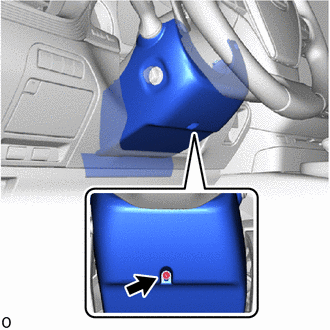

3. Remove the screw.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

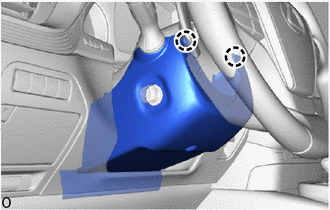

4. Push from both left and right sides to detach the claw as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Push in this Direction

5. Detach the claw.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

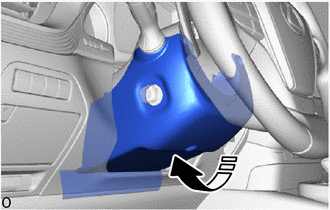

6. Pull in the direction of the arrow shown in the illustration and remove the lower steering column cover, taking care not to catch the tilt and telescopic switch.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

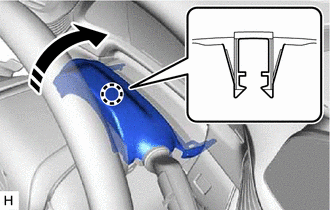

1. Detach the claw and disconnect the upper steering column cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

2. w/ Advanced Drive:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

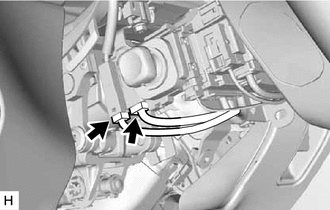

   1. Disconnect the 2 connectors.

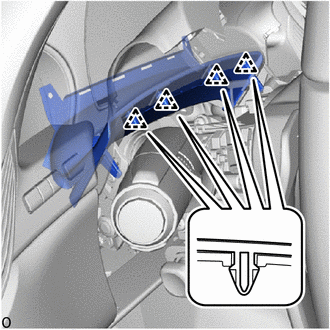

3. Detach the clip and remove the upper steering column cover from the meter hood spacer.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

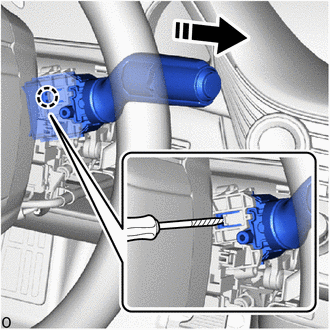

1. Using a screwdriver with its tip wrapped with protective tape, detach the claw and remove the windshield wiper switch assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Remove in this Direction
   	Protective Tape

   NOTE:

   Do not damage the claw.
