Removal [10/2022 - 10/2023]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 25

  2. REMOVE LUGGAGE COMPARTMENT FLOOR MAT

    Refer to PROCEDURE - Step 24

  3. REMOVE TOOL BOX

    Refer to PROCEDURE - Step 28

  4. REMOVE LOWER INNER LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 29

  5. REMOVE LUGGAGE COMPARTMENT TRIM COVER RH

    Refer to PROCEDURE - Step 27

  6. REMOVE ROPE HOOK ASSEMBLY

    Refer to PROCEDURE - Step 10

  7. REMOVE REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 11

  8. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 30

  9. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  10. REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 33

  11. REMOVE SIDE TRIM BOX

    Refer to PROCEDURE - Step 14

  12. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY RH

    Refer to PROCEDURE - Step 17

  13. REMOVE REAR LUGGAGE COMPARTMENT TRAY BRACKET RH

    Refer to PROCEDURE - Step 14

  14. REMOVE SUSPENSION CONTROL ECU

    Refer to PROCEDURE - Step 10

  15. REMOVE CLEARANCE WARNING ECU ASSEMBLY

    Refer to PROCEDURE - Step 16

  16. REMOVE STEREO COMPONENT EQUALIZER ASSEMBLY

    Refer to PROCEDURE - Step 2

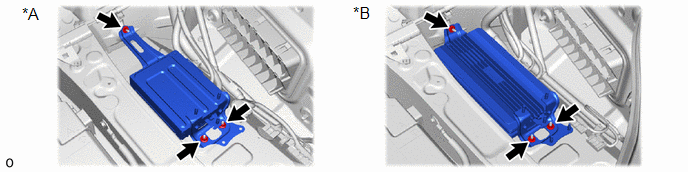

  17. REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY WITH BRACKET
    1. Remove the 3 nuts.
      GTY1135267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for 12 Speakers *B for 24 Speakers

      HINT:

      If the removed nut is the same shape as that shown in the illustration, replace it the supplied replacement part.

      GTY833118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull out the stereo component amplifier assembly with bracket.

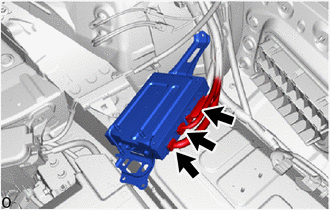

    3. for 12 Speakers:
      1. Disconnect the 3 connectors and remove the stereo component amplifier assembly with bracket.
        GTY1136093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. for 24 Speakers:
      1. Disconnect the 4 connectors and remove the stereo component amplifier assembly with bracket.
        GTY835563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

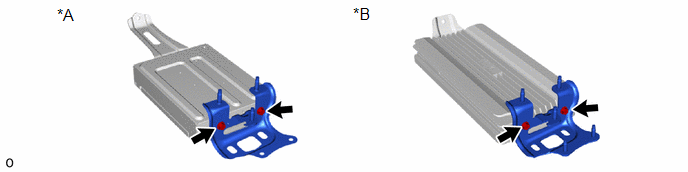

  18. REMOVE NO. 1 AMPLIFIER BRACKET
    1. Remove the 2 screws and No. 1 amplifier bracket.
      GTY1135729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for 12 Speakers *B for 24 Speakers

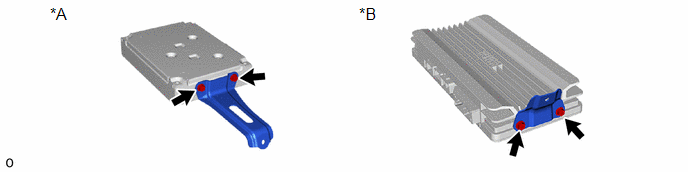

  19. REMOVE NO. 2 AMPLIFIER BRACKET
    1. Remove the 2 screws and No. 2 amplifier bracket.
      GTY1136808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for 12 Speakers *B for 24 Speakers
  20. REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY
