Removal [10/2017 - 10/2023]: Procedure

  1. REMOVE CLEARANCE WARNING ECU ASSEMBLY

    Refer to REMOVAL [10/2017 - 10/2020] , or refer to REMOVAL [10/2020 - 11/2021] , or refer to REMOVAL [11/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023]

  2. REMOVE STEREO COMPONENT EQUALIZER ASSEMBLY
    1. Connect the connector.

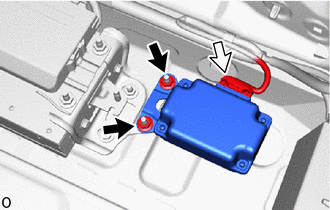

      GTY804057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Nut
      Connector
    2. Remove the 2 nuts and stereo component equalizer assembly.

      HINT:

      If the removed nut is the same shape as that shown in the illustration, replace it the supplied replacement part.

      GTY833118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
