Removal [10/2017 - 10/2023]: Procedure

  1. REMOVE FRONT WHEEL

    Refer to REMOVAL [10/2017 - 10/2023]

  2. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY (for 2WD)

    Refer to PROCEDURE - Step 18 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 18 [09/2018 - 09/2019] , or refer to PROCEDURE - Step 18 [09/2019 - 10/2020] , or refer to PROCEDURE - Step 18 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 18 [11/2021 - 10/2022] , or refer to PROCEDURE - Step 18 [10/2022 - 10/2023]

  3. REMOVE TRANSMISSION UNDER COVER (for 2WD)

    Refer to PROCEDURE - Step 19 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 19 [09/2018 - 09/2019] , or refer to PROCEDURE - Step 19 [09/2019 - 10/2020] , or refer to PROCEDURE - Step 19 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 19 [11/2021 - 10/2022] , or refer to PROCEDURE - Step 19 [10/2022 - 10/2023]

  4. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY (for 2WD)

    Refer to PROCEDURE - Step 20 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 20 [09/2018 - 09/2019] , or refer to PROCEDURE - Step 20 [09/2019 - 10/2020] , or refer to PROCEDURE - Step 20 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 20 [11/2021 - 10/2022] , or refer to PROCEDURE - Step 20 [10/2022 - 10/2023]

  5. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY (for AWD)

    Refer to PROCEDURE - Step 23 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 23 [09/2018 - 09/2019] , or refer to PROCEDURE - Step 23 [09/2019 - 10/2020] , or refer to PROCEDURE - Step 23 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 23 [11/2021 - 10/2022] , or refer to PROCEDURE - Step 23 [10/2022 - 10/2023]

  6. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 8 [10/2017 - 10/2020] , or refer to PROCEDURE - Step 8 [10/2020 - 10/2023]

  7. REMOVE ENGINE SIDE COVER LH (for 2WD)

    Refer to PROCEDURE - Step 9 [10/2017 - 10/2020] , or refer to PROCEDURE - Step 9 [10/2020 - 10/2023]

  8. REMOVE FRONT FENDER WHEEL OPENING MOULDING LH

    Refer to PROCEDURE - Step 10 [10/2017 - 10/2020] , or refer to PROCEDURE - Step 10 [10/2020 - 10/2023]

  9. REMOVE FRONT FENDER LINER LH

    Refer to PROCEDURE - Step 11 [10/2017 - 10/2020] , or refer to PROCEDURE - Step 11 [10/2020 - 10/2023]

  10. REMOVE WIRELESS DOOR LOCK BUZZER
    1. Disconnect the connector.

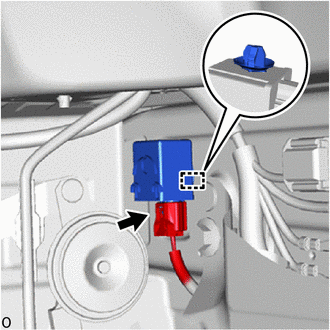

      GTY797695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the clamp and remove the wireless door lock buzzer.
      NOTE:
      • Do not drop the wireless door lock buzzer.
      • Do not reuse the wireless door lock buzzer that has been dropped.
