Removal [08/2016 - 08/2019]: Procedure

  1. REMOVE CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 2)
    1. Disconnect the camshaft timing oil control solenoid assembly connector.

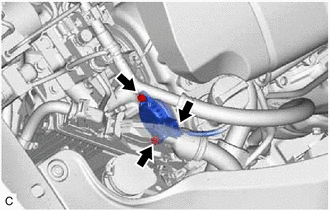

      GTY667668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and camshaft timing oil control solenoid assembly from the timing chain cover assembly.
      NOTE:

      If the camshaft timing oil control solenoid assembly has been struck or dropped, replace it.

    3. Remove the O-ring from the camshaft timing oil control solenoid assembly.
      GTY667665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • If the O-ring comes off in the timing chain cover assembly, make sure to remove it.
      • Do not drop the O-ring into the timing chain cover assembly.
  2. REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  3. REMOVE NO. 2 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 11 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 11 [12/2017 - 08/2019]

  4. REMOVE ECM

    Refer to REMOVAL [08/2016 - 08/2019]

  5. REMOVE INTAKE AIR SURGE TANK ASSEMBLY

    Refer to REMOVAL [08/2016 - 12/2017] , or refer to REMOVAL [12/2017 - 08/2019]

  6. REMOVE INLET AIR CLEANER ASSEMBLY

    See step  2

  7. REMOVE BATTERY

    for 2WD: Refer to PROCEDURE - Step 6

    for AWD: Refer to PROCEDURE - Step 6

  8. REMOVE BATTERY CARRIER SUB-ASSEMBLY

    for 2WD: Refer to PROCEDURE - Step 9 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 9 [12/2017 - 08/2019]

    for AWD: Refer to PROCEDURE - Step 9 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 9 [12/2017 - 08/2019]

  9. REMOVE BATTERY BRACKET REINFORCEMENT

    for 2WD: Refer to PROCEDURE - Step 10 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 10 [12/2017 - 08/2019]

    for AWD: Refer to PROCEDURE - Step 10 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 10 [12/2017 - 08/2019]

  10. REMOVE FUEL PUMP PROTECTOR

    Refer to PROCEDURE - Step 6 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 6 [12/2017 - 08/2019]

  11. REMOVE WIRE HARNESS CLAMP BRACKET

    for 2WD: Refer to PROCEDURE - Step 29 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 30 [12/2017 - 08/2019]

    for AWD: Refer to PROCEDURE - Step 30 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 31 [12/2017 - 08/2019]

  12. REMOVE BRAKE ACTUATOR ASSEMBLY

    Refer to REMOVAL [08/2016 - 08/2019]

  13. DISCONNECT NO. 1 RADIATOR HOSE

    Refer to PROCEDURE - Step 15

  14. INSTALL ENGINE SUPPORT BRIDGE

    for 2WD: Refer to PROCEDURE - Step 32 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 33 [12/2017 - 08/2019]

    for AWD: Refer to PROCEDURE - Step 33 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 34 [12/2017 - 08/2019]

  15. REMOVE NO. 2 ENGINE MOUNTING STAY RH

    Refer to PROCEDURE - Step 12 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 13 [12/2017 - 08/2019]

  16. REMOVE ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH

    Refer to PROCEDURE - Step 16

  17. REMOVE CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 2)
    1. Disconnect the camshaft timing oil control solenoid assembly connector.

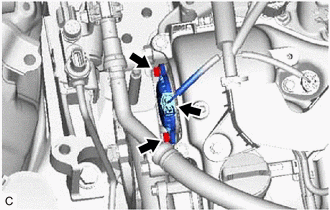

      GTY667848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and camshaft timing oil control solenoid assembly from the timing chain cover assembly.
      NOTE:

      If the camshaft timing oil control solenoid assembly has been struck or dropped, replace it.

    3. Remove the O-ring from the camshaft timing oil control solenoid assembly.
      GTY667665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • If the O-ring comes off in the timing chain cover assembly, make sure to remove it.
      • Do not drop the O-ring into the timing chain cover assembly.
