Removal [09/2017 - ]: Procedure

  1. DISABLE AUTOAWAY/RETURN FUNCTION (for Power Tilt and Power Telescopic Steering Column)
    1. Disable the autoaway/return function by changing the customize parameter.

      Refer to CUSTOMIZE PARAMETERS [10/2014 - ]

      WARNING:

      Record the current customize parameter setting (whether the autoaway/return function is enabled or disabled) in order to restore the current setting after finishing the operation.

      HINT:

      Performing the above operation causes the autoaway/return function to be disabled when the power switch is turned off.

    2. Turn the power switch on (IG). Operate the tilt and telescopic switch to fully extend and lower the steering column assembly.
    3. Turn the power switch off.
  2. REMOVE CONSOLE ARMREST ASSEMBLY

    Refer to PROCEDURE - Step 8 [09/2017 - 05/2019], or refer to PROCEDURE - Step 8 [05/2019 - ]

  3. REMOVE UPPER REAR CONSOLE PANEL

    Refer to PROCEDURE - Step 9 [09/2017 - 05/2019], or refer to PROCEDURE - Step 9 [05/2019 - ]

  4. REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH

    Refer to PROCEDURE - Step 10 [09/2017 - 05/2019], or refer to PROCEDURE - Step 10 [05/2019 - ]

  5. REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH

    Refer to PROCEDURE - Step 11 [09/2017 - 05/2019], or refer to PROCEDURE - Step 11 [05/2019 - ]

  6. REMOVE INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 12 [09/2017 - 05/2019], or refer to PROCEDURE - Step 12 [05/2019 - ]

  7. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 13 [09/2017 - 05/2019], or refer to PROCEDURE - Step 13 [05/2019 - ]

  8. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 14 [09/2017 - 05/2019], or refer to PROCEDURE - Step 14 [05/2019 - ]

  9. REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 15 [09/2017 - 05/2019], or refer to PROCEDURE - Step 15 [05/2019 - ]

  10. REMOVE NO. 1 SWITCH HOLE BASE

    Refer to PROCEDURE - Step 16 [09/2017 - 05/2019], or refer to PROCEDURE - Step 16 [05/2019 - ]

  11. REMOVE INSTRUMENT SIDE PANEL RH

    Refer to PROCEDURE - Step 17 [09/2017 - 05/2019], or refer to PROCEDURE - Step 17 [05/2019 - ]

  12. REMOVE NO. 2 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 18 [09/2017 - 05/2019], or refer to PROCEDURE - Step 18 [05/2019 - ]

  13. REMOVE INSTRUMENT PANEL FINISH PLATE

    Refer to PROCEDURE - Step 19 [09/2017 - 05/2019], or refer to PROCEDURE - Step 19 [05/2019 - ]

  14. REMOVE MULTI-DISPLAY ASSEMBLY WITH BRACKET

    Refer to PROCEDURE - Step 8 [09/2017 - 05/2019], or refer to PROCEDURE - Step 10 [05/2019 - ]

  15. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 21 [09/2017 - 05/2019], or refer to PROCEDURE - Step 21 [05/2019 - ]

  16. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 22 [09/2017 - 05/2019], or refer to PROCEDURE - Step 22 [05/2019 - ]

  17. REMOVE COMBINATION METER ASSEMBLY

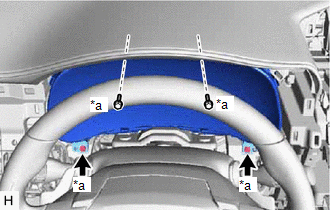

    1. Remove the 4 screws.
      GTY794552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Screw
    2. Disconnect the connectors, detach the clamp and remove the combination meter assembly.
