Installation [09/2017 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY (PATTERN SELECT SWITCH)

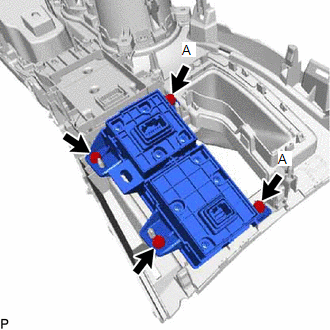

    1. Install the integration control and panel assembly (pattern select switch) to the rear upper console panel sub-assembly with the 2 screws.
      GTY509739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      The locations labeled A in the illustration are tightened together with the shift position indicator.

  2. INSTALL SHIFT POSITION INDICATOR

    See step  1

  3. INSTALL UPPER REAR CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7

  4. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8

  5. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 14 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 14 [05/2019 - ]

  6. INSTALL NO. 2 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 17 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 17 [05/2019 - ]

  7. INSTALL NO. 1 SWITCH HOLE BASE

    Refer to PROCEDURE - Step 19 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 19 [05/2019 - ]

  8. INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 20 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 20 [05/2019 - ]

  9. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 21 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 21 [05/2019 - ]

  10. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 22 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 22 [05/2019 - ]

  11. INSTALL INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 23 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 23 [05/2019 - ]

  12. INSTALL INSTRUMENT SIDE PANEL RH

    Refer to PROCEDURE - Step 18 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 18 [05/2019 - ]

  13. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH

    Refer to PROCEDURE - Step 24 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 24 [05/2019 - ]

  14. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH

    Refer to PROCEDURE - Step 25 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 25 [05/2019 - ]

  15. INSTALL UPPER REAR CONSOLE PANEL

    Refer to PROCEDURE - Step 26 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 26 [05/2019 - ]

  16. INSTALL CONSOLE ARMREST ASSEMBLY

    Refer to PROCEDURE - Step 27 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 27 [05/2019 - ]

  17. INSTALL MULTI-DISPLAY ASSEMBLY WITH BRACKET

    Refer to PROCEDURE - Step 3 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 3 [05/2019 - ]

  18. INSTALL INSTRUMENT PANEL FINISH PLATE

    Refer to PROCEDURE - Step 16 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 16 [05/2019 - ]
