Installation [09/2017 - 05/2019]: Procedure

INSTALL MULTI-DISPLAY CONTROLLER BRACKET A

for 8 inch:

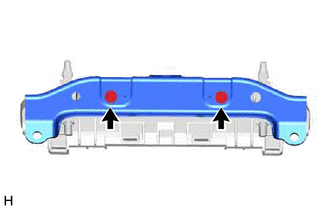

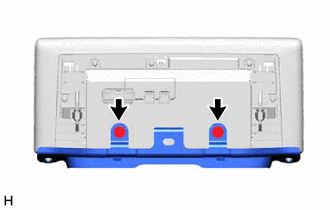

Temporarily install the multi-display controller bracket A with the 2 screws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

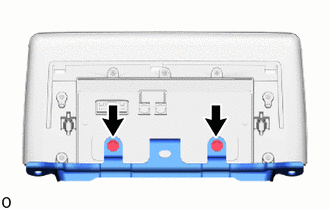

Install the 2 screws and tighten the 2 screws used to temporarily install the bracket.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for 10.3 inch:

Temporarily install the multi-display controller bracket A with the 2 screws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the 2 screws and tighten the 2 screws used to temporarily install the bracket.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL MULTI-DISPLAY ASSEMBLY WITH BRACKET

for 8 inch:

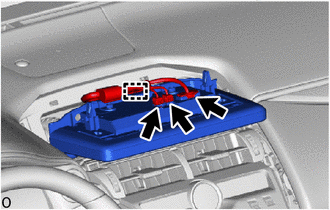

Connect the 3 connector and attach the clamp.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

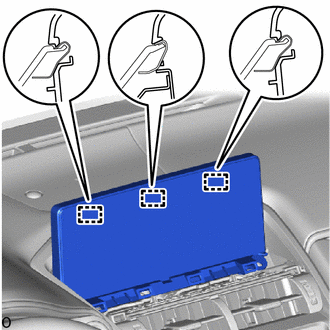

Set the 3 guides.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

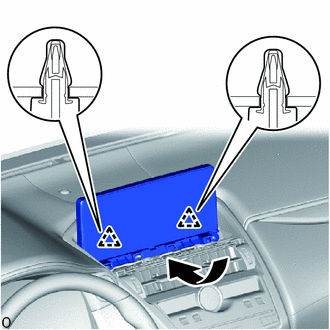

Move the multi-display assembly with bracket as shown in the illustration to attach the 2 clips.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

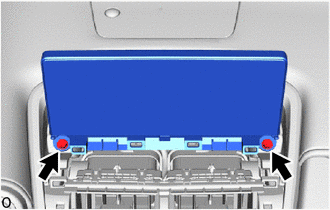

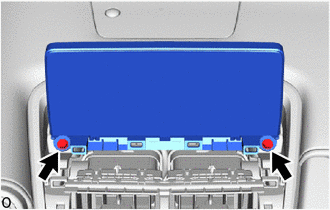

Install the 2 bolts and multi-display assembly with bracket.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for 10.3 inch:

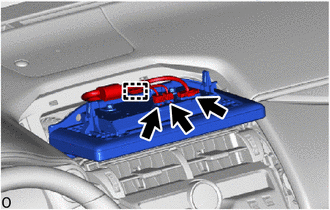

Connect the 3 connector and attach the clamp.

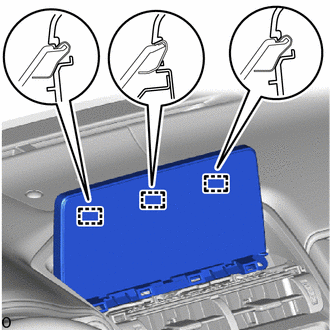

Set the 3 guides.

Move the multi-display assembly with bracket as shown in the illustration to attach the 2 clips.

Install the 2 bolts and multi-display assembly with bracket.

INSTALL INSTRUMENT PANEL FINISH PLATE
Refer to PROCEDURE - Step 16
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [09/2017 - 05/2019]
