Removal [10/2014 - 09/2015]: Procedure

  1. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY (for Type B)

    Refer to REMOVAL [10/2014 - ]

  2. REMOVE INTERCOOLER ASSEMBLY

    Refer to REMOVAL [10/2014 - 09/2015]

  3. REMOVE GENERATOR ASSEMBLY

    Refer to REMOVAL [10/2014 - 05/2019]

  4. REMOVE WINDSHIELD WIPER MOTOR ASSEMBLY

    Refer to REMOVAL [10/2014 - ]

  5. REMOVE SUSPENSION TOWER DAMPER (w/ Performance Rod)
    1. Remove the 2 nuts and suspension tower damper.
      GTY512091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE OUTER COWL TOP PANEL

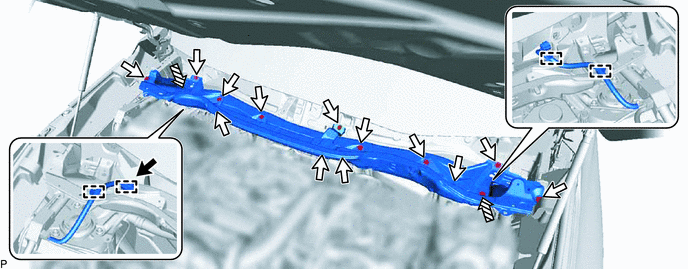

    1. w/o Performance Damper:
      1. Disconnect the connector, 4 clamps and wire harness.
      2. Remove the 13 bolts, 2 nuts and outer cowl top panel.
        GTY501972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Connector Bolt
        Nut - -
    2. w/ Performance Rod:
      1. Disconnect the connector.
      2. Detach the 4 clamps and disconnect the wire harness.
      3. Remove the 13 bolts and outer cowl top panel.
        GTY506438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Connector Bolt
  7. REMOVE PURGE VSV

    Refer to PROCEDURE - Step 3 [10/2014 - ]

  8. DISCONNECT WATER BY-PASS HOSE
    1. Slide the 2 clips and disconnect the No. 5 sub-radiator hose and No. 6 sub-radiator hose from the No. 2 water by-pass pipe.
      GTY505776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. DISCONNECT ENGINE WIRE
    1. Disconnect the 3 connectors and detach the wire harness clamp.
      GTY504982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and nut from the wire harness bracket.
    3. Remove the bolt, detach the wire harness clamp and disconnect the wire harness.
      GTY505747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the 7 connectors and detach the 3 clamps.
      GTY505773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disconnect the 3 connectors, detach the 2 clamps and disconnect the engine wire.
      GTY505771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the ground bolt.
  10. REMOVE NO. 2 WATER BY-PASS PIPE
    1. Remove the 3 bolts and No. 2 water by-pass pipe from the cylinder head cover sub-assembly and No. 2 vacuum switching valve bracket.
      GTY505749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. DISCONNECT NO. 2 VACUUM TRANSMITTING HOSE ASSEMBLY
    1. Detach the clamp and disconnect the No. 2 vacuum transmitting hose assembly from the vacuum pump assembly and cylinder head cover sub-assembly.
      GTY519309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE NO. 2 TURBO PRESSURE SENSOR

    Refer to PROCEDURE - Step 2 [10/2014 - ]

  13. REMOVE NO. 1 VACUUM TRANSMITTING HOSE
    1. Detach the clamp and disconnect the No. 1 vacuum transmitting hose from the intake manifold.
      GTY505759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. DISCONNECT VACUUM TRANSMITTING HOSE ASSEMBLY
    1. Detach the 5 clamps and disconnect the vacuum transmitting hose assembly from the cylinder head cover sub-assembly.
      GTY495984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the vacuum transmitting hose assembly from the waste gate valve actuator with bracket assembly.
      GTY510526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE NO. 2 PCV HOSE
    1. Slide the 2 clamps and remove the No. 2 PCV hose from the intake manifold and cylinder head cover sub-assembly.
      GTY505748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. DISCONNECT THROTTLE BODY WATER BY-PASS HOSE
    1. Slide the clamp and disconnect the No. 2 water by-pass hose from the No. 1 water by-pass pipe.
      GTY506828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Water By-pass Hose
      *2 No. 2 Water By-pass Hose
    2. Slide the clamp and disconnect the No. 1 water by-pass hose from the cylinder head sub-assembly.
  17. REMOVE INTAKE MANIFOLD

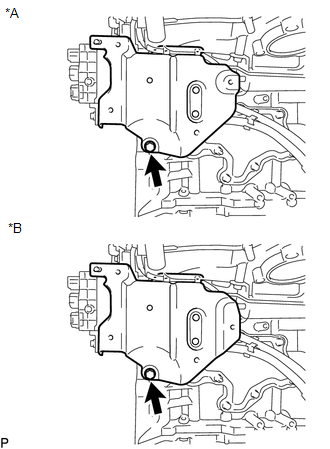

    1. Remove the bolt.
      GTY496969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for Type A
      *B for Type B
    2. Remove the 3 bolts, 2 nuts and intake manifold.
      GTY505764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 nuts, No. 1 water by-pass hose and No. 2 water by-pass hose from the intercooler support bracket sub-assembly.
      GTY505746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 2 bolts and intercooler support bracket sub-assembly.
      GTY505760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Align the intercooler support bracket sub-assembly with its marked original position and remove it.

    5. Remove the bolt and wire harness clamp bracket.
      GTY505758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the 2 intake manifold gaskets from the intake manifold.
      GTY505763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE NO. 2 FUEL VAPOR FEED HOSE
    1. Slide the clamp and remove the No. 2 fuel vapor feed hose from the intake manifold.
      GTY504980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE BRACKET
    1. Remove the bolt and bracket from the intake manifold.
      GTY519141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE NO. 3 VACUUM TRANSMITTING HOSE ASSEMBLY
    1. Detach the 2 clamps.
      GTY505757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the No. 3 vacuum transmitting hose assembly from the vacuum surge tank.
      GTY505755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE NO. 1 TURBO PRESSURE SENSOR
    1. Remove the bolt and No. 1 turbo pressure sensor.
      GTY505756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE VACUUM REGULATING VALVE ASSEMBLY

    Refer to PROCEDURE - Step 2 [10/2014 - ]

  23. REMOVE NO. 4 VACUUM TRANSMITTING HOSE ASSEMBLY
    1. Detach the 2 clamps and remove the No. 4 vacuum transmitting hose assembly from the vacuum surge tank.
      GTY505754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE VACUUM SURGE TANK
    1. Remove the 3 bolts and vacuum surge tank.
      GTY519315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
