Removal [10/2014 - ]: Procedure

  1. REMOVE GENERATOR ASSEMBLY

    Refer to REMOVAL [10/2014 - 05/2019] , or refer to REMOVAL [05/2019 - ]

  2. REMOVE VACUUM REGULATING VALVE ASSEMBLY

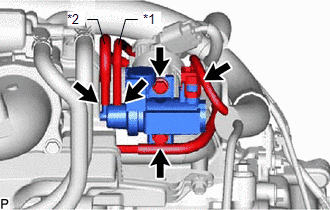

    1. Disconnect the vacuum regulating valve assembly connector.
      GTY497313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Vacuum Transmitting Hose Assembly
      *2 No. 3 Vacuum Transmitting Hose Assembly
    2. Disconnect the vacuum transmitting hose assembly and No. 3 vacuum transmitting hose assembly from the vacuum regulating valve assembly.
    3. Remove the 2 bolts and vacuum regulating valve assembly.
