Removal [09/2015 - ]: Procedure
- REMOVE ENGINE AND TRANSAXLE
Refer to REMOVAL [10/2014 - 09/2016] , or refer to REMOVAL [09/2016 - 05/2019] , or refer to REMOVAL [05/2019 - ]
- REMOVE IGNITION COIL ASSEMBLY
Refer to PROCEDURE - Step 2 [10/2014 - ]
- REMOVE NO. 2 WATER BY-PASS PIPE
Refer to PROCEDURE - Step 11 [09/2015 - ]
- REMOVE FUEL PUMP PROTECTOR
Refer to PROCEDURE - Step 2 [09/2015 - 09/2017] , or refer to PROCEDURE - Step 2 [09/2017 - ]
- REMOVE BRACKET
Refer to PROCEDURE - Step 3 [09/2015 - 09/2017] , or refer to PROCEDURE - Step 3 [09/2017 - ]
- REMOVE NO. 1 FUEL PIPE SUB-ASSEMBLY (for High Pressure)
Refer to PROCEDURE - Step 5 [09/2015 - 09/2017] , or refer to PROCEDURE - Step 5 [09/2017 - ]
- REMOVE FUEL PUMP ASSEMBLY (for High Pressure)
Refer to PROCEDURE - Step 6 [09/2015 - 09/2017] , or refer to PROCEDURE - Step 6 [09/2017 - ]
- REMOVE NO. 2 PCV HOSE
Refer to PROCEDURE - Step 16 [09/2015 - ]
- DISCONNECT VACUUM TRANSMITTING HOSE ASSEMBLY
Refer to PROCEDURE - Step 15 [09/2015 - ]
- DISCONNECT NO. 2 VACUUM TRANSMITTING HOSE ASSEMBLY
Refer to PROCEDURE - Step 12 [09/2015 - ]
- DISCONNECT ENGINE WIRE
Refer to PROCEDURE - Step 8 [10/2014 - ]
- REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY NOTE:
Be sure not to disconnect the PCV hose or the No. 4 PCV hose from the cylinder head cover sub-assembly.
- Remove the 2 bolts and 2 camshaft position sensor from the cylinder head cover sub-assembly.

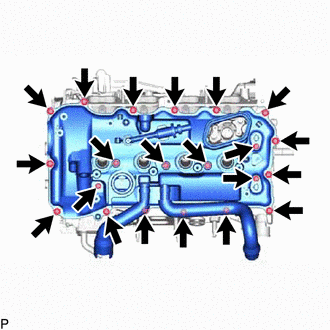

- Remove the 19 bolts and cylinder head cover sub-assembly from the camshaft housing sub-assembly.

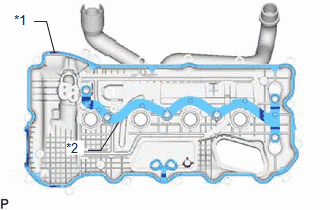

- Remove the cylinder head cover gasket and No. 2 cylinder head cover gasket from the cylinder head cover sub-assembly.

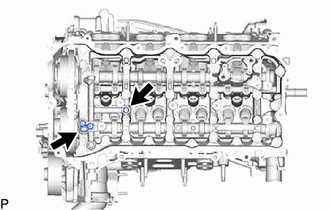

*1 Cylinder Head Cover Gasket *2 No. 2 Cylinder Head Cover Gasket - Remove the 2 gaskets from the No. 1 camshaft bearing cap and No. 2 camshaft bearing cap.
- Remove the 2 bolts and 2 camshaft position sensor from the cylinder head cover sub-assembly.
- REMOVE FAN AND GENERATOR V BELT
Refer to PROCEDURE - Step 2 [10/2014 - ]
- REMOVE CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY
Refer to PROCEDURE - Step 1 [10/2014 - ]
- REMOVE IDLER PULLEY SUB-ASSEMBLY

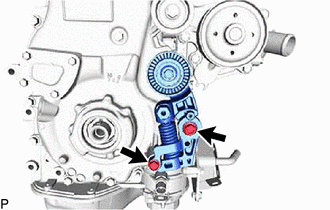

- REMOVE V-RIBBED BELT TENSIONER ASSEMBLY

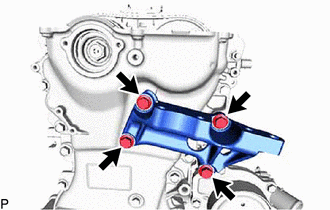

- REMOVE TRANSVERSE ENGINE MOUNTING BRACKET
- REMOVE CRANKSHAFT PULLEY ASSEMBLY
Refer to PROCEDURE - Step 27 [09/2015 - ]
- REMOVE CRANKSHAFT POSITION SENSOR
Refer to PROCEDURE - Step 1 [10/2014 - ]
- REMOVE TIMING CHAIN COVER ASSEMBLY

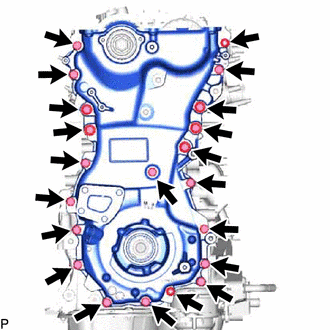

- Remove the 2 nuts and 19 bolts from the timing chain cover assembly.

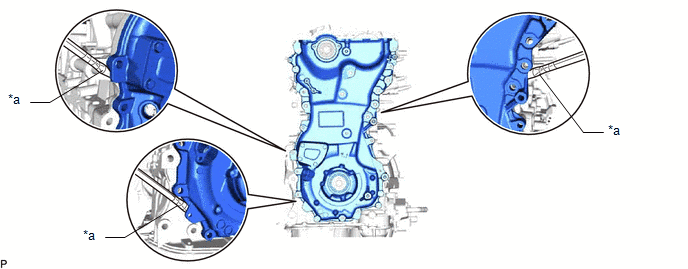

- Using a screwdriver wrapped in protective tape, remove the timing chain cover assembly by prying the points in the illustration.
*a Protective Tape - - NOTE:Do not damage the contacting surfaces of the timing chain cover assembly, camshaft housing sub-assembly, cylinder head sub-assembly, stiffening crankcase assembly and cylinder block sub-assembly.

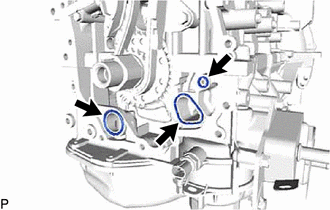

- Remove the 2 oil pump gaskets and oil hole cover gasket from the stiffening crankcase assembly.
- Remove the 2 nuts and 19 bolts from the timing chain cover assembly.

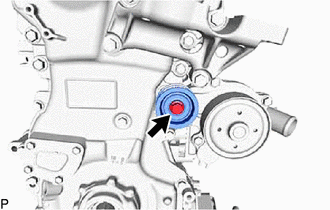

- REMOVE TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL
