Removal [10/2014 - ]: Procedure

  1. REMOVE CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY
    1. Disconnect the camshaft timing oil control solenoid assembly connector.
    2. Remove the 2 bolts and camshaft timing oil control solenoid assembly.

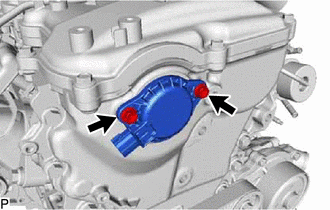

      GTY506706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the O-ring.
      NOTE:
      • Make sure to remove the O-ring completely, as the O-ring may remain on the timing chain cover assembly side.
      • Do not drop the O-ring into the timing chain cover assembly.
