Removal [10/2014 - ]: Procedure

  1. REMOVE REAR ENGINE UNDER COVER RH

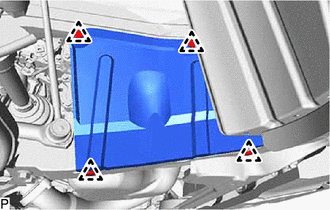

    GTY507147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 4 clips and rear engine under cover RH.
  2. REMOVE FAN AND GENERATOR V BELT
    1. Using a tool, turn the pulley set bolt of the V-ribbed belt tensioner assembly counterclockwise to loosen the tension.

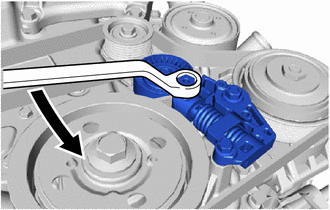

      GTY505575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a 5 mm hexagon wrench, secure the V-ribbed belt tensioner assembly as shown in the illustration and remove the fan and generator V belt.

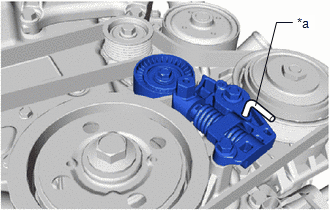

      GTY499005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hexagon Wrench
