Removal [10/2014 - ]: Procedure

  1. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 20 [10/2014 - 09/2015] , or refer to PROCEDURE - Step 20 [09/2015 - 09/2017] , or refer to PROCEDURE - Step 20 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 20 [05/2019 - ]

  2. REMOVE FRONT PILLAR GARNISH ASSEMBLY LH

    Refer to PROCEDURE - Step 26 [10/2014 - 09/2015] , or refer to PROCEDURE - Step 26 [09/2015 - 09/2017] , or refer to PROCEDURE - Step 26 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 26 [05/2019 - ]

  3. REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 25 [10/2014 - 09/2017] , or refer to PROCEDURE - Step 26 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 26 [05/2019 - ]

  4. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY
    NOTE:

    Do not touch the cone part of the speaker.

    1. Remove the 2 screws.

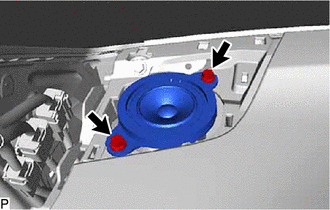

      GTY514522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector and remove the front No. 2 speaker assembly.
  5. REMOVE NO. 1 SPEAKER OPENING COVER ASSEMBLY

    Refer to PROCEDURE - Step 27 [10/2014 - 09/2017] , or refer to PROCEDURE - Step 28 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 28 [05/2019 - ]

  6. REMOVE FRONT NO. 3 SPEAKER ASSEMBLY
    NOTE:

    Do not touch the cone part of the speaker.

    1. Remove the 2 screws.

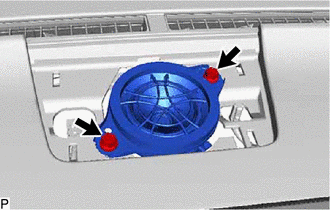

      GTY502297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector and remove the front No. 3 speaker assembly.
