Installation [09/2017 - ]: Procedure

  1. INSTALL COMBINATION METER ASSEMBLY
    1. Connect the connectors and attach the clamp.

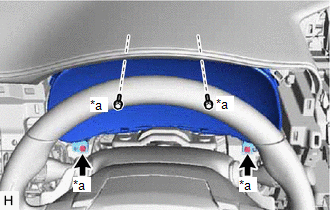

      GTY831525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Screw
    2. Install the combination meter assembly with the 4 screws.
  2. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 13 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 13 [05/2019 - ]

  3. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 14 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 14 [05/2019 - ]

  4. INSTALL MULTI-DISPLAY ASSEMBLY WITH BRACKET

    Refer to PROCEDURE - Step 3 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 3 [05/2019 - ]

  5. INSTALL INSTRUMENT PANEL FINISH PLATE

    Refer to PROCEDURE - Step 16 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 16 [05/2019 - ]

  6. INSTALL NO. 2 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 17 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 17 [05/2019 - ]

  7. INSTALL INSTRUMENT SIDE PANEL RH

    Refer to PROCEDURE - Step 18 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 18 [05/2019 - ]

  8. INSTALL NO. 1 SWITCH HOLE BASE

    Refer to PROCEDURE - Step 19 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 19 [05/2019 - ]

  9. INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 20 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 20 [05/2019 - ]

  10. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 21 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 21 [05/2019 - ]

  11. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 22 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 22 [05/2019 - ]

  12. INSTALL INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 23 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 23 [05/2019 - ]

  13. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH

    Refer to PROCEDURE - Step 24 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 24 [05/2019 - ]

  14. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH

    Refer to PROCEDURE - Step 25 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 25 [05/2019 - ]

  15. INSTALL UPPER REAR CONSOLE PANEL

    Refer to PROCEDURE - Step 26 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 26 [05/2019 - ]

  16. INSTALL CONSOLE ARMREST ASSEMBLY

    Refer to PROCEDURE - Step 27 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 27 [05/2019 - ]

  17. ENABLE AUTOAWAY/RETURN FUNCTION (for Power Tilt and Power Telescopic Steering Column)
    1. Restore the autoaway/return function setting to the previous condition by changing the customize parameter.

      Refer to CUSTOMIZE PARAMETERS [10/2014 - ]
