Removal [12/2017 - 11/2021]: Procedure

  1. PRECAUTION
    NOTE:

    Do not race the engine before replacing the compressor assembly with pulley

  2. AIR SUSPENSION CONTROL PROHIBITED (w/ Air Suspension)

    Refer to PRECAUTION [12/2017 - ]

  3. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 11 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 11 [10/2020 - 10/2022]

  4. REMOVE RADIATOR COVER PLATE

    Refer to PROCEDURE - Step 1

  5. REMOVE UPPER RADIATOR SUPPORT SEAL

    Refer to PROCEDURE - Step 2

  6. REMOVE LOWER RADIATOR AIR DEFLECTOR

    Refer to PROCEDURE - Step 3

  7. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM

    Refer to PROCEDURE - Step 4

  8. DISCONNECT NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 1

  9. REMOVE OIL PAN PROTECTOR

    Refer to PROCEDURE - Step 7

  10. REMOVE FAN AND GENERATOR V BELT

    Refer to PROCEDURE - Step 9

  11. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 8

  12. REMOVE RADIATOR SUPPORT TO CROSSMEMBER BRACE SUB-ASSEMBLY RH
    1. Remove the 2 bolts and radiator support to crossmember brace sub-assembly RH.
      GTY834649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE RADIATOR SUPPORT TO CROSSMEMBER BRACE SUB-ASSEMBLY LH
    1. Remove the 2 bolts and radiator support to crossmember brace sub-assembly LH.
      GTY837321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE AIR CLEANER WITH ELEMENT ASSEMBLY RH

    Refer to PROCEDURE - Step 44 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 44 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 44 [10/2020 - 10/2022]

  15. REMOVE AIR CLEANER WITH ELEMENT ASSEMBLY LH

    Refer to PROCEDURE - Step 43 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 43 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 43 [10/2020 - 10/2022]

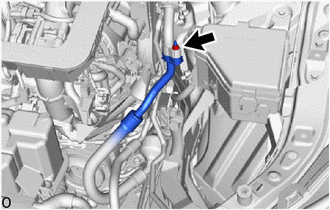

  16. DISCONNECT SUCTION HOSE SUB-ASSEMBLY
    1. Remove the nut and disconnect the suction hose sub-assembly from the air conditioning tube and accessory assembly.
      NOTE:

      Do not apply excessive force to the suction hose sub-assembly from the air conditioning tube and accessory assembly.

      GTY775419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the suction hose sub-assembly
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

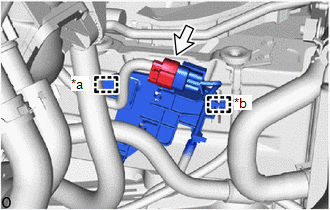

  17. REMOVE NO. 13 CONNECTOR HOLDER
    1. Disconnect the connector.
      GTY810715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp
      *b Guide
    2. Detach the clamp and guide and remove the No. 13 connector holder from the air cleaner support bracket assembly.

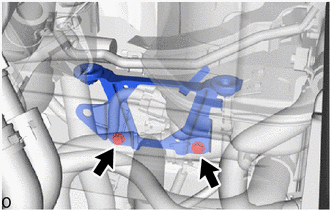

  18. DISCONNECT AIR CLEANER SUPPORT BRACKET ASSEMBLY
    1. Remove the 2 bolts and air cleaner support bracket assembly.
      GTY775420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE NO. 2 AIR TUBE ASSEMBLY

    Refer to PROCEDURE - Step 11

  20. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY (for Bank 2)

    Refer to PROCEDURE - Step 13

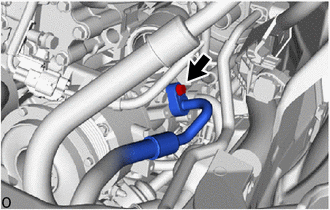

  21. REMOVE DISCHARGE HOSE SUB-ASSEMBLY
    1. Remove the bolt and disconnect the discharge hose sub-assembly from the compressor assembly with pulley.
      GTY827344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not apply excessive force to the discharge hose sub-assembly.

    2. Remove the O-ring from the discharge hose sub-assembly.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

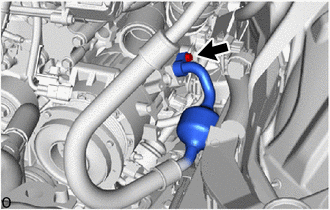

  22. REMOVE SUCTION HOSE SUB-ASSEMBLY
    1. Remove the bolt and suction hose sub-assembly from the compressor assembly with pulley.
      NOTE:

      Do not apply excessive force to the suction hose sub-assembly.

      GTY775412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the suction hose sub-assembly
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

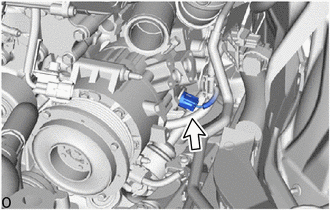

  23. REMOVE COMPRESSOR ASSEMBLY WITH PULLEY
    1. Disconnect the connector.
      GTY775413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

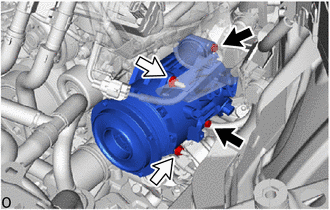

    2. Remove the 2 bolts and 2 nuts and compressor assembly with pulley.
      GTY792095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut

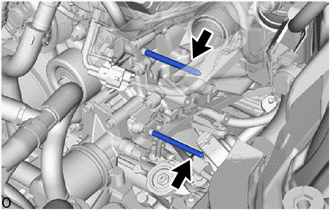

    3. Using an E8 "TORX" socket wrench, remove the 2 stud bolts.
      GTY827346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
