Removal [12/2017 - ]: Procedure

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 11 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 11 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 11 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 11 [10/2023 - ]

  2. REMOVE RADIATOR COVER PLATE

    Refer to PROCEDURE - Step 9 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 9 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 9 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 9 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 9 [10/2023 - ]

  3. REMOVE UPPER RADIATOR SUPPORT SEAL

    Refer to PROCEDURE - Step 8 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 8 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 8 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 8 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 8 [10/2023 - ]

  4. REMOVE LOWER RADIATOR AIR DEFLECTOR

    Refer to PROCEDURE - Step 10 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 10 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 10 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 10 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 10 [10/2023 - ]

  5. REMOVE OIL PAN PROTECTOR (for 2WD)

    See step  7 [12/2017 - 11/2021], or see step  7 [11/2021 - ]

  6. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY (for AWD)

    Refer to PROCEDURE - Step 20 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 20 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 20 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 20 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 20 [10/2023 - ]

  7. REMOVE FRONT SUSPENSION MEMBER BRACE (for AWD)

    Refer to PROCEDURE - Step 23 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 23 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 23 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 23 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 23 [10/2023 - ]

  8. REMOVE STRUT BAR BRACKET SUPPORT SUB-ASSEMBLY (for AWD)

    Refer to PROCEDURE - Step 24 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 24 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 24 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 24 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 24 [10/2023 - ]

  9. REMOVE FAN AND GENERATOR V BELT

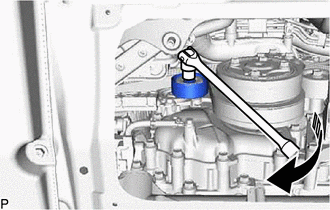

    1. Release the fan and generator V belt tension by turning the V-ribbed belt tensioner assembly clockwise and remove the fan and generator V belt from the V-ribbed belt tensioner assembly.
      GTY837167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Turn in this Direction
    2. Rotate the V-ribbed belt tensioner assembly clockwise to align the holes and then insert a 5 mm hexagon wrench to secure the V-ribbed belt tensioner assembly in place.
      GTY825103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 5 mm Hexagon Wrench
      *b Hole
    3. Remove the fan and generator V belt.
