Installation [10/2020 - ]: Procedure

  1. INSTALL DCM (TELEMATICS TRANSCEIVER)
  2. INSTALL NO. 4 TELEPHONE BRACKET
    1. Install the No. 4 telephone bracket with the screw.
      GTY970928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 4.5 N.m (46 kgf/cm, 40 in.lbf)

  3. INSTALL NO. 3 TELEPHONE BRACKET
    1. Install the No. 3 telephone bracket with the screw.
      GTY970802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 4.5 N.m (46 kgf/cm, 40 in.lbf)

  4. INSTALL DCM (TELEMATICS TRANSCEIVER) WITH BRACKET
    1. Connect the 6 connectors.

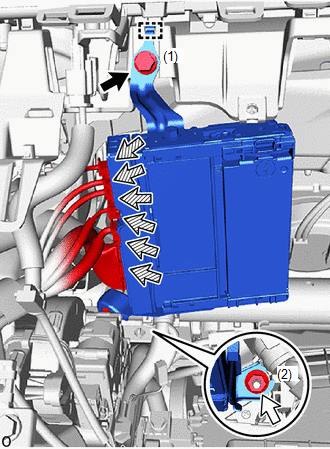

      Fig 1: DCM (Telematics Transceiver) With Bracket Replacement Components Tightening Sequence
      GTY970545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Connector
      Nut
    2. Attach the guide and temporary install the DCM (telematics transceiver) with bracket.
    3. Install the DCM (telematics transceiver) with bracket in the order shown in the illustration.

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

  5. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY

    Refer to PROCEDURE - Step 15 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 14 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 14 [10/2023 - ]

  6. INSTALL GLOVE COMPARTMENT DOOR PAD PLATE

    Refer to PROCEDURE - Step 16 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 15 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 15 [10/2023 - ]

  7. INSTALL LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 1

  8. INSTALL NO. 2 CONSOLE UPPER PANEL GARNISH

    Refer to PROCEDURE - Step 7 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 7 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 7 [10/2023 - ]

  9. INSTALL INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY

    Refer to PROCEDURE - Step 23 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 22 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 22 [10/2023 - ]

  10. INSTALL INSTRUMENT PANEL SAFETY PAD INSERT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 26 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 25 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 25 [10/2023 - ]

  11. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 27 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 26 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 26 [10/2023 - ]

  12. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 31 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 30 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 30 [10/2023 - ]

  13. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 25 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 24 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 24 [10/2023 - ]

  14. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 39 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 38 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 38 [10/2023 - ]

  15. INSTALL LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 33 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 32 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 32 [10/2023 - ]

  16. INSTALL INSTRUMENT SIDE PANEL RH

    Refer to PROCEDURE - Step 8 [12/2017 - 10/2022] , or refer to PROCEDURE - Step 9 [10/2022 - ]

  17. INSTALL INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 9 [12/2017 - 10/2022] , or refer to PROCEDURE - Step 10 [10/2022 - ]

  18. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 2 [10/2020 - 10/2023] , or refer to PROCEDURE - Step 2 [10/2023 - ]

  19. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11

  20. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL

    Refer to WORK PROCEDURE [10/2020 - 10/2022] , or refer to WORK PROCEDURE [10/2022 - 10/2023] , or refer to WORK PROCEDURE [10/2023 - ]

    HINT:

    When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

    Refer to AUTOMATIC LEARNING CHART [10/2020 - 10/2023] , or refer to AUTOMATIC LEARNING CHART [10/2023 - ]

  21. DCM ACTIVATION

    HINT:

    When replacing the DCM (telematics transceiver), perform DCM activation.

    Refer to DCM ACTIVATION [10/2020 - 10/2022] , or refer to DCM ACTIVATION [10/2022 - ]

  22. LEXUS ENFORM REMOTE REGISTRATION
    1. for LEXUS ENFORM Remote compatible type

      HINT:

      When replacing the DCM (telematics transceiver), perform LEXUS ENFORM remote registration.

      Refer to REGISTRATION [10/2020 - 10/2022] , or refer to REGISTRATION [10/2022 - 10/2023] , or refer to REGISTRATION [10/2023 - ]
