Removal [03/2017 - 05/2023]: Procedure

REMOVE FRONT SEAT ASSEMBLY LH
Refer to REMOVAL [03/2017 - 05/2023]
REMOVE OUTER LAP BELT ANCHOR COVER
Refer to PROCEDURE - Step 11
REMOVE FRONT SEAT OUTER BELT ASSEMBLY LH (FLOOR ANCHOR)
Refer to PROCEDURE - Step 12
REMOVE FRONT DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 6
REMOVE FRONT DOOR OPENING TRIM COVER LH
Refer to PROCEDURE - Step 12 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 12 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 12 [04/2020 - 05/2023]
REMOVE FRONT DOOR NO. 2 OPENING TRIM COVER LH
Refer to PROCEDURE - Step 14 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 14 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 14 [04/2020 - 05/2023]
REMOVE FRONT PILLAR GARNISH LH
Refer to PROCEDURE - Step 12
REMOVE REAR SEAT CUSHION ASSEMBLY
Refer to PROCEDURE - Step 1
REMOVE REAR SEAT CUSHION LOCK HOOK
Refer to PROCEDURE - Step 2
REMOVE REAR SEAT SIDE GARNISH
Refer to PROCEDURE - Step 3
REMOVE REAR SEATBACK COVER
Refer to PROCEDURE - Step 5
REMOVE REAR SEATBACK ASSEMBLY LH
Refer to PROCEDURE - Step 6
REMOVE QUARTER INSIDE TRIM BOARD LH
Refer to PROCEDURE - Step 17
REMOVE REAR NO. 1 SEAT INNER BELT ASSEMBLY LH
Refer to PROCEDURE - Step 4
REMOVE QUARTER TRIM PANEL ASSEMBLY LH
Refer to PROCEDURE - Step 21

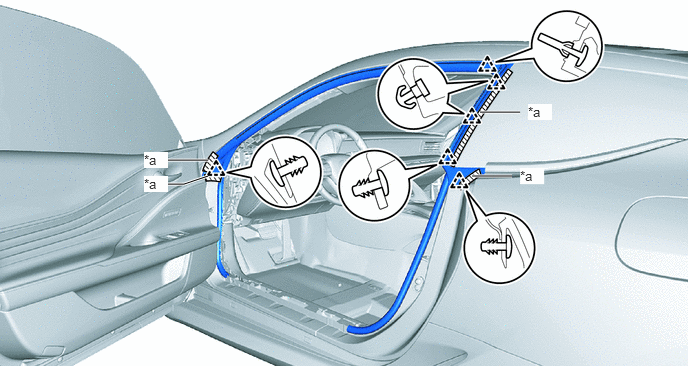

REMOVE FRONT ROOF SIDE RAIL WEATHERSTRIP LH

Using a clip remover, detach the clips and remove the front roof side rail weatherstrip LH.

Double-sided Tape

Clean the vehicle body.
HINT:

Remove any remaining sealer from the vehicle body.
