Removal [08/2018 - 08/2021]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work.

    Refer to PRECAUTION [08/2015 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [08/2015 - 08/2019] , or refer to INITIALIZATION [08/2019 - 08/2021]

  3. REMOVE DOOR SCUFF PLATE ASSEMBLY RH

    Refer to PROCEDURE - Step 7 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 7 [08/2019 - 08/2021]

  4. REMOVE COWL SIDE TRIM BOARD RH

    Refer to PROCEDURE - Step 9 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 9 [08/2019 - 08/2021]

  5. REMOVE INSTRUMENT SIDE PANEL RH

    Refer to PROCEDURE - Step 26 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 26 [08/2019 - 08/2021]

  6. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL GARNISH

    Refer to PROCEDURE - Step 27 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 28 [08/2019 - 08/2021]

  7. REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY

    Refer to PROCEDURE - Step 28 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 28 [08/2019 - 08/2021]

  8. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 2 [08/2019 - 08/2021]

  9. REMOVE FRONT NO. 2 CONSOLE BOX INSERT

    Refer to PROCEDURE - Step 4 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 4 [08/2019 - 08/2021]

  10. REMOVE INSTRUMENT PANEL FINISH PANEL END RH

    Refer to PROCEDURE - Step 6 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 6 [08/2019 - 08/2021]

  11. REMOVE LOWER INSTRUMENT COVER LH

    Refer to PROCEDURE - Step 29 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 29 [08/2019 - 08/2021]

  12. REMOVE LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 7

  13. REMOVE INSTRUMENT PANEL BOX DOOR COVER

    Refer to PROCEDURE - Step 31 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 31 [08/2019 - 08/2021]

  14. REMOVE INSTRUMENT PANEL BOX ASSEMBLY

    Refer to PROCEDURE - Step 32 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 32 [08/2019 - 08/2021]

  15. REMOVE DCM (TELEMATICS TRANSCEIVER)

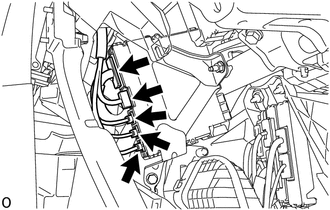

    1. Disconnect the 5 connectors.
      GTY817891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

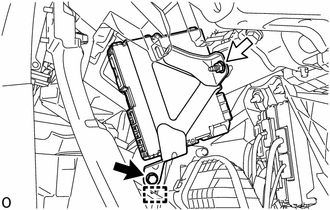

    2. Remove the bolt and nut.
      GTY796528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut
    3. Detach the guide and remove the DCM (telematics transceiver).
