Removal [08/2015 - 08/2019]: Procedure

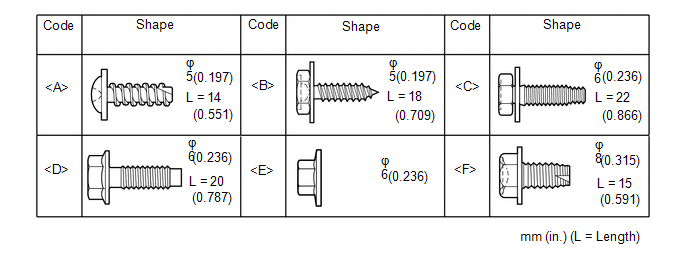

  1. TABLE OF BOLT, SCREW AND NUT

    HINT:

    All bolts, screws and nuts relevant to installing and removing the instrument panel are shown along with their alphabet code in the table below.

    GTY642836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Refer to PRECAUTION [08/2015 - ] ).

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    1. Disable the auto tilt away function by changing the customize parameter (Refer to CUSTOMIZE PARAMETERS [08/2015 - 08/2019] ).
      NOTE:

      Record the current customize parameter setting (whether the auto tilt away function is enabled or disabled) in order to restore the current setting after finishing the operation.

      HINT:

      Performing the above operation causes the auto tilt away function to be disabled when the engine switch is turned off.

    2. Turn the engine switch on (IG). Operate the tilt and telescopic switch to fully extend and lower the steering column assembly.
    3. Turn the engine switch off and disconnect the cable from the negative (-) battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

      NOTE:

      When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [08/2015 - 08/2019] ).

  4. REMOVE HEADLIGHT DIMMER SWITCH ASSEMBLY

    (Refer to REMOVAL [08/2015 - ] )

  5. REMOVE REAR CONSOLE BOX ASSEMBLY

    w/o Refrigerated Cool Box:

    (Refer to REMOVAL [08/2015 - 08/2019] )

    w/ Refrigerated Cool Box:

    (Refer to REMOVAL [08/2015 - 08/2021] )

  6. REMOVE DOOR SCUFF PLATE ASSEMBLY LH

    See step  5[08/2015 - 08/2016], or see step  5[08/2016 - 08/2019]

  7. REMOVE DOOR SCUFF PLATE ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  8. REMOVE COWL SIDE TRIM BOARD LH

    See step  7[08/2015 - 08/2016], or see step  7[08/2016 - 08/2019]

  9. REMOVE COWL SIDE TRIM BOARD RH

    HINT:

    Use the same procedure described for the LH side.

  10. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    See step  9[08/2015 - 08/2016], or see step  9

  11. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure described for the LH side.

  12. REMOVE FRONT NO. 1 ASSIST GRIP PLUG LH

    See step  11[08/2015 - 08/2016], or see step  11[08/2016 - 08/2019]

  13. REMOVE FRONT NO. 1 ASSIST GRIP PLUG RH

    HINT:

    Use the same procedure described for the LH side.

  14. REMOVE NO. 1 ASSIST GRIP

    See step  13[08/2015 - 08/2016], or see step  13[08/2016 - 08/2019]

  15. REMOVE FRONT PILLAR GARNISH LH

    See step  14[08/2015 - 08/2016], or see step  14[08/2016 - 08/2019]

  16. REMOVE FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedure described for the LH side.

  17. REMOVE INSTRUMENT SIDE PANEL LH

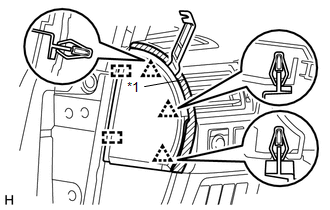

    GTY258317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Put protective tape around the instrument side panel LH.
      TEXT IN ILLUSTRATION

      *1 Protective Tape
    2. Using a moulding remover B, detach the 3 clips and 2 guides and remove the instrument side panel LH.
  18. REMOVE NO. 2 SWITCH HOLE BASE

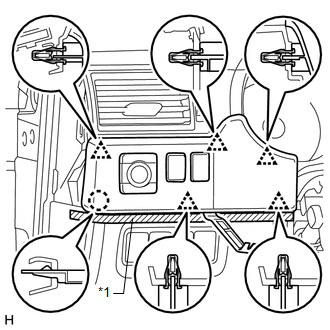

    GTY279032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Put protective tape around the No. 2 switch hole base.
      TEXT IN ILLUSTRATION

      *1 Protective Tape
    2. Using a moulding remover B, detach the 5 clips and claw and remove the No. 2 switch hole base.
    3. Disconnect each connector.
  19. REMOVE NO. 1 INSTRUMENT PANEL FINISH CUSHION

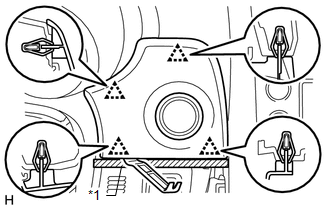

    GTY680505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Put protective tape around the No. 1 instrument panel finish cushion.
      TEXT IN ILLUSTRATION

      *1 Protective Tape
    2. Using a moulding remover B, detach the 4 clips and remove the No. 1 instrument panel finish cushion.
    3. Disconnect the connector.
  20. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY

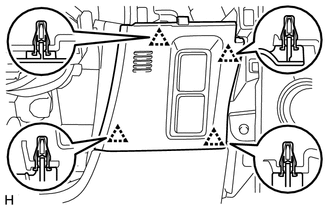

    GTY257583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 4 clips and remove the lower instrument panel finish panel assembly.
    2. Disconnect each connector and cooler thermistor.
  21. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

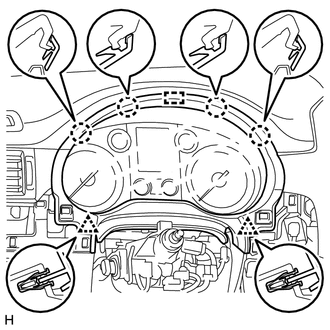

    GTY257584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 4 claws, 2 clips and guide and remove the instrument cluster finish panel sub-assembly.
  22. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY

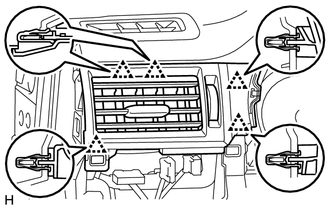

    GTY257586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 5 clips and remove the No. 1 instrument panel register assembly.
  23. REMOVE COMBINATION METER ASSEMBLY

    Refer to PROCEDURE - Step 11

  24. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
    GTY230989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a screwdriver, detach the 2 claws and open the cover.

      HINT:

      Tape the screwdriver tip before use.

      TEXT IN ILLUSTRATION

      *1 Protective Tape

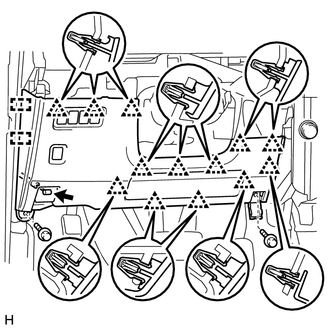

    2. GTY257580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 2 bolts <C>.

    3. Detach the 13 clips and 2 guides and remove the lower instrument panel finish panel sub-assembly.
    4. Disconnect each connector and hood lock control cable.
  25. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 7

  26. REMOVE INSTRUMENT SIDE PANEL RH

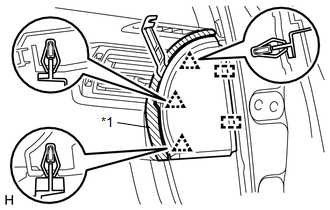

    GTY271487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Put protective tape around the instrument side panel RH.
      TEXT IN ILLUSTRATION

      *1 Protective Tape
    2. Using a moulding remover B, detach the 3 clips and 2 guides and remove the instrument side panel RH.
  27. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL GARNISH

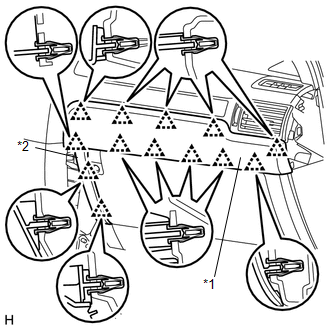

    GTY643953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 13 clips and remove the center instrument cluster finish panel garnish together with the instrument cluster finish panel garnish.
      TEXT IN ILLUSTRATION

      *1 Center Instrument Cluster Finish Panel Garnish
      *2 Instrument Cluster Finish Panel Garnish
  28. REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY

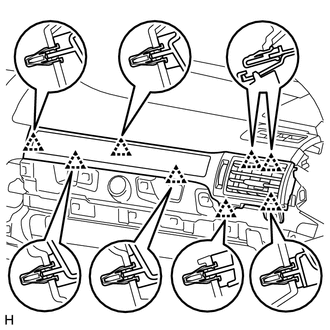

    GTY282322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 8 clips and remove the No. 2 instrument panel register assembly.
  29. REMOVE LOWER INSTRUMENT COVER LH

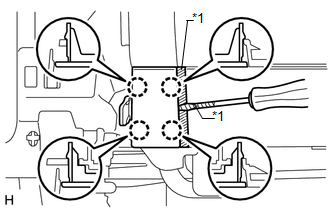

    GTY210850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Put protective tape around the lower instrument cover LH.
    2. Using a screwdriver, detach the 4 claws and remove the lower instrument cover LH.

      HINT:

      Tape the screwdriver tip before use.

      TEXT IN ILLUSTRATION

      *1 Protective Tape
  30. REMOVE LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 7

  31. REMOVE INSTRUMENT PANEL BOX DOOR COVER
    GTY221411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    Use the same procedure for all instrument panel box door covers.

    1. Using a screwdriver, detach the 2 claws and 2 guides and remove the instrument panel box door cover.

      HINT:

      Tape the screwdriver tip before use.

      TEXT IN ILLUSTRATION

      *1 Protective Tape
  32. REMOVE INSTRUMENT PANEL BOX ASSEMBLY

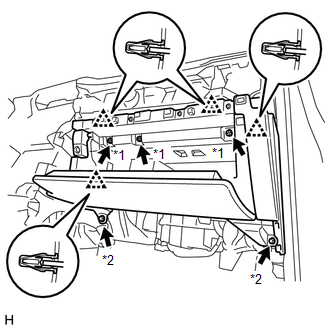

    GTY661028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 3 screws <B> and 2 bolts <C>.
      TEXT IN ILLUSTRATION

      *1 Screw <B>
      *2 Bolt <C>
    2. Detach the 4 clips and remove the instrument panel box.
    3. Disconnect each connector and detach the wire harness clamp.
  33. REMOVE DRIVING SUPPORT SWITCH CONTROL ECU

    Refer to PROCEDURE - Step 14

  34. REMOVE 4 WHEEL DRIVE CONTROL ECU

    Refer to PROCEDURE - Step 11

  35. REMOVE DCM (TELEMATICS TRANSCEIVER)

    Refer to PROCEDURE - Step 15 [08/2015 - 08/2018] , or refer to PROCEDURE - Step 15 [08/2018 - 08/2021]

  36. REMOVE FRONT UPPER CONSOLE PANEL GARNISH

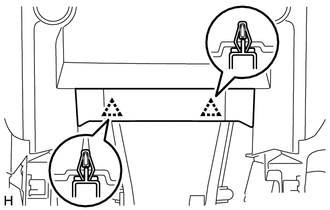

    GTY462703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 2 clips and remove the front upper console panel garnish.
  37. REMOVE MULTI-MEDIA MODULE RECEIVER ASSEMBLY

    w/o Navigation System:

    (Refer to PROCEDURE - Step 8 )

    w/ Navigation System:

    (Refer to PROCEDURE - Step 8 )

  38. REMOVE MULTI-DISPLAY ASSEMBLY

    w/o Navigation System:

    (Refer to PROCEDURE - Step 12 )

    w/ Navigation System:

    (Refer to PROCEDURE - Step 12 )

  39. REMOVE UPPER INSTRUMENT CLUSTER FINISH PANEL

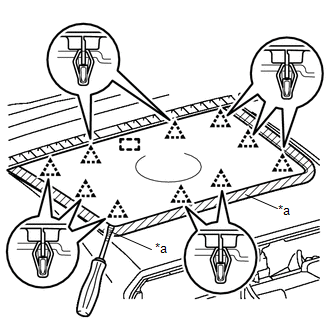

    GTY1082800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Protective Tape
    1. Put protective tape around the upper instrument cluster finish panel.
    2. Using a screwdriver, detach the 10 clips and guide and remove the upper instrument cluster finish panel.

      HINT:

      Tape the screwdriver tip before use.

  40. REMOVE FRONT NO. 4 SPEAKER ASSEMBLY

    Refer to PROCEDURE - Step 9

  41. REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY

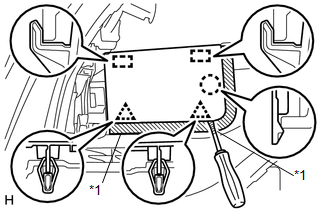

    GTY283511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Put protective tape around the No. 1 instrument panel speaker panel sub-assembly.
    2. Using a screwdriver, detach the 2 clips, claw and 2 guides and remove the No. 1 instrument panel speaker panel sub-assembly.

      HINT:

      Tape the screwdriver tip before use.

      TEXT IN ILLUSTRATION

      *1 Protective Tape
  42. REMOVE NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY

    HINT:

    Use the same procedure described for the No. 1 instrument panel speaker panel sub-assembly.

  43. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY

    Refer to PROCEDURE - Step 7

  44. REMOVE FRONT NO. 3 SPEAKER ASSEMBLY

    Refer to PROCEDURE - Step 6

  45. REMOVE FRONT SEAT ASSEMBLY LH

    (Refer to REMOVAL [08/2015 - 08/2021] )

  46. REMOVE FRONT SEAT ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  47. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
    1. Partially remove the floor carpet.

      HINT:

      It is not necessary to fully remove the floor carpet. Partially remove it so that the No. 2 instrument panel wire can be removed in a later step.

    2. Remove the 6 bolts <D> and nut <E>.
    3. Remove the 2 passenger airbag bolts <F>.
    4. Disconnect each connector and detach each wire harness clamp and claw.
    5. Detach the 2 guides and remove the instrument panel safety pad sub-assembly.

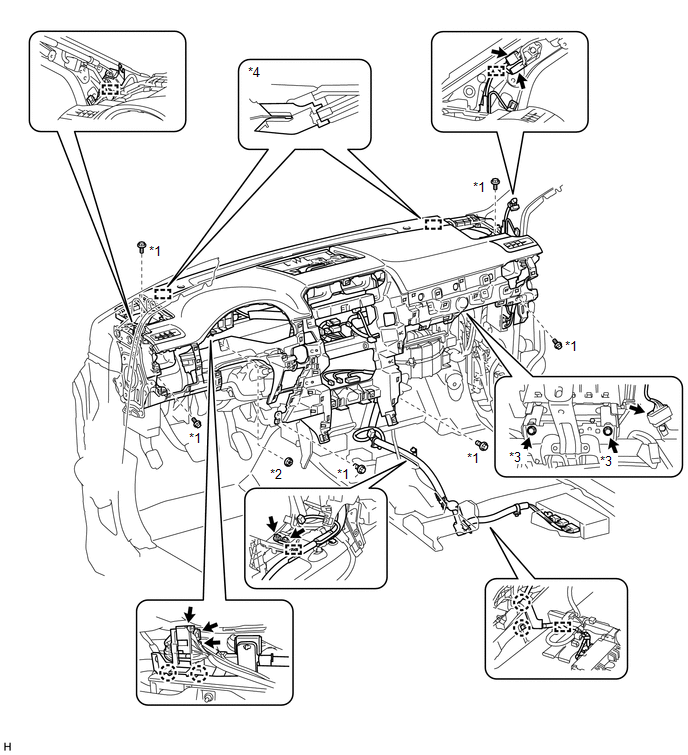

      GTY633394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Bolt <D> *2 Nut <E>
      *3 Bolt <F> *4 Guide
