Removal [10/2015 - 09/2017]: Procedure

  1. PRECAUTION
    NOTE:
    • After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work

      Refer to PRECAUTION [10/2015 - ]

    • If the DCM (telematics transceiver) has been replaced, perform the DCM Activation procedure using the Techstream.

      Refer to DCM ACTIVATION [10/2015 - 09/2017]

    • The safety connect device uses the DCM (telematics transceiver) to provide access to the network service.
    • The DCM (telematics transceiver) has a DCM ID (described on the label attached to the DCM (telematics transceiver)).
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    GTY684647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [10/2015 - 09/2016] , or Refer to INITIALIZATION [09/2016 - 09/2017]

  3. REMOVE INSTRUMENT CENTER CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  4. REMOVE INSTRUMENT PANEL FINISH PANEL END RH

    Refer to PROCEDURE - Step 3

  5. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 7

  6. REMOVE FRONT DOOR OPENING TRIM COVER RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 9

  7. REMOVE INSTRUMENT SIDE PANEL RH

    Refer to PROCEDURE - Step 23

  8. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 24

  9. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

    Refer to PROCEDURE - Step 25

  10. REMOVE DCM (TELEMATICS TRANSCEIVER) WITH BRACKET
    1. Remove the 3 bolts.

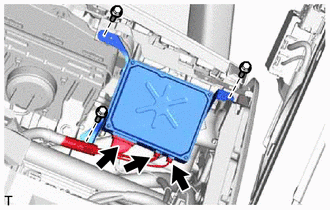

      GTY403179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the 3 connectors to remove the DCM (telematics transceiver) with bracket.
  11. REMOVE NO. 1 TELEPHONE BRACKET
    1. Remove the bolt and No. 1 telephone bracket.
      GTY403177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE TELEPHONE BRACKET
    1. Remove the 2 bolts and telephone bracket.
      GTY403178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
