Disassembly [10/2017 - 09/2018]: Procedure
- PRECAUTION WARNING:
Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.
Refer to PRECAUTION [10/2017 - 10/2020]
NOTE:After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.
Refer to PRECAUTION [10/2017 - 09/2019]
- REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
Refer to PROCEDURE - Step 24
- DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
- Disconnect the cable from the negative (-) auxiliary battery terminal.
Refer to PROCEDURE - Step 3
WARNING:- After disconnecting the cable from the negative (-) auxiliary battery terminal, wait for at least 90 seconds to start the operation.
- If the airbag deploys for any reason, it may cause a serious accident.
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [10/2017 - 09/2018]
- Disconnect the cable from the negative (-) auxiliary battery terminal.
- REMOVE FRONT DOOR TRIM UPPER COVER LH
- REMOVE FRONT DOOR ARMREST COVER LH
- REMOVE FRONT DOOR NO. 2 ARMREST COVER LH
- REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH
- Remove the 3 screws.
Place Hand Here Remove in this Direction - Place your hand at the position shown in the illustration, and while pulling the front door trim board sub-assembly LH toward you, detach the clip and disconnect the front door trim board sub-assembly LH from the front door panel.
- Pull the front door trim board sub-assembly LH in the direction indicated by the arrow shown in the illustration to detach the claw and remove the front door trim board sub-assembly LH.
Remove in this Direction - Disconnect the front door lock remote control cable assembly LH from the front door inside handle sub-assembly LH.
Remove in this Direction - Detach the claw and disconnect the front door inside locking cable assembly LH.
Remove in this Direction Push - Disconnect each connector.
- Remove the 3 screws.
- REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY (for Driver Side)
Refer to PROCEDURE - Step 1
- REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY (for Front Passenger Side)
Refer to PROCEDURE - Step 1
- REMOVE COURTESY LIGHT ASSEMBLY
Refer to REMOVAL [10/2017 - ]
- REMOVE DOOR LOCK CONTROL KNOB BEZEL LH
- REMOVE FRONT DOOR LOCK CONTROL KNOB HOLDER LH
- REMOVE FRONT DOOR INNER TRIM COVER LH
- REMOVE NO. 2 SWITCH BEZEL
Refer to PROCEDURE - Step 7
- REMOVE SEAT MEMORY SWITCH LH
Refer to REMOVAL [10/2017 - ]
- REMOVE FRONT DOOR INSIDE HANDLE SUB-ASSEMBLY LH
- REMOVE FRONT DOOR TRIM COVER LH
- REMOVE UPPER DOOR FRAME GARNISH LH
- REMOVE FRONT DOOR GLASS INNER WEATHERSTRIP LH
- REMOVE FRONT DOOR VENT SEAL LH
- REMOVE FRONT DOOR PANEL PROTECTOR LH
- REMOVE FRONT NO. 1 SPEAKER ASSEMBLY
Refer to PROCEDURE - Step 5
- REMOVE FRONT DOOR SERVICE HOLE COVER LH
- Disconnect the wire harness clamps.
Turn Service Hole Cover Clip - As shown in the illustration, turn the service hole cover clip 45° to release the lock, and then remove the 4 service hole cover clips.
- Using a clip remover, detach the clip and remove the front door service hole cover LH.
- Pull out the front door lock remote control cable assembly LH and front door inside locking cable assembly LH from the front door service hole cover LH.
Remove in this Direction
- Disconnect the wire harness clamps.
- REMOVE OUTER MIRROR INSTALL HOLE COVER LH
Refer to PROCEDURE - Step 5
- REMOVE FRONT MULTIPLEX NETWORK DOOR ECU LH
- REMOVE OUTER REAR VIEW MIRROR ASSEMBLY LH
Refer to PROCEDURE - Step 7
- REMOVE DOOR SIDE AIR BAG SENSOR LH
Refer to PROCEDURE - Step 10

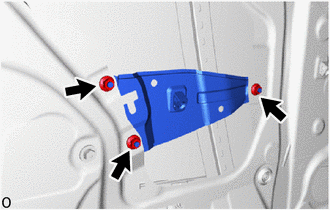

- REMOVE FRONT DOOR ARMREST SET BRACKET LH
- REMOVE FRONT DOOR NO. 3 WEATHERSTRIP LH
- REMOVE FRONT DOOR NO. 2 WEATHERSTRIP LH
- REMOVE FRONT DOOR BELT MOULDING LH
Refer to PROCEDURE - Step 11

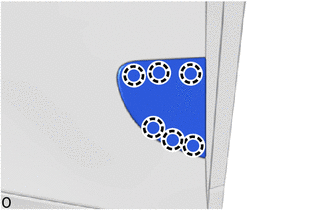

- REMOVE FRONT DOOR REAR BELT MOULDING END COVER LH
HINT:
When removing the front door rear belt moulding end cover LH, heat the rear door panel and rear front door rear belt moulding end cover LH using a heat light.
Standard
Item Temperature Front Door Panel 40 to 60°C (104 to 140°F) Front Door Rear belt Belt Moulding End Cover LH 20 to 30°C (68 to 86°F) - REMOVE FRONT DOOR WINDOW FRAME MOULDING LH (CENTER PILLAR SIDE)
Refer to PROCEDURE - Step 17
- REMOVE FRONT PILLAR UPPER COVER SUB-ASSEMBLY LH
- Fold back the front door glass run LH in the direction indicated by the arrow (1) shown in the illustration.
HINT:
Do not remove the front door glass run LH from the front pillar upper cover sub-assembly LH.
Remove in this Direction (1) Remove in this Direction (2) - Pull out the front door glass run LH in the direction indicated by the arrow (2) shown in the illustration.
- Remove the 2 bolts, slide the front door glass run LH in the direction indicated by the arrow shown in the illustration and remove it together with the front pillar upper cover sub-assembly LH.
Remove in this Direction (1) Remove in this Direction (2) HINT:
Be careful not to damage the body and the front door glass sub-assembly LH with the front pillar upper cover sub-assembly LH.
- Fold back the front door glass run LH in the direction indicated by the arrow (1) shown in the illustration.
- REMOVE FRONT DOOR GLASS RUN LH
- REMOVE FRONT DOOR FRONT GLASS RUN LH

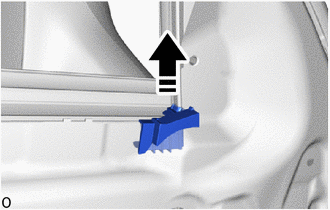

- REMOVE DOOR GUIDE PROTECTOR
- REMOVE FRONT DOOR GLASS SUB-ASSEMBLY LH
- Connect the 3 front multiplex network door ECU LH connectors.
- Connect the connector and temporarily install the front door trim board sub-assembly LH.
- Connect the cable to the negative (-) auxiliary battery terminal.
- Turn the power switch on (IG).
- Move the front door glass sub-assembly LH until the installation bolts can be seen.
- Turn the power switch off.
- Disconnect the cable from the negative (-) auxiliary battery terminal.
- Disconnect the connector and remove the front door trim board sub-assembly LH.
- Disconnect the 3 front multiplex network door ECU LH connectors.
- Apply protective tape around the front door panel as shown in the illustration.
Protective Tape - Remove the 2 bolts.
- Remove the front door glass sub-assembly LH in the order shown in the illustration.
Remove in this Direction (1) Remove in this Direction (2) NOTE:Be careful not to damage the front door glass sub-assembly LH.
- Connect the 3 front multiplex network door ECU LH connectors.
- REMOVE FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY LH
- REMOVE FRONT DOOR NO. 2 GLASS RUN LH
- REMOVE FRONT DOOR REAR WINDOW FRAME LH
- Set a 4.0 mm diameter drill bit into an air drill.
- Wind vinyl tape around the 4.0 mm diameter drill bit 5.0 mm from the tip of the drill.
*a Wind Vinyl Tape Standard Value
Area Standard Value A 5.0 mm (0.197 in.) HINT:
Wind vinyl tape around the drill bit to prevent drilling too deep.
- Lightly press the air drill against the rivets, drill off the flanges of the rivets and remove the 4 rivets.WARNING:
Be careful of the drilled rivets as they are hot
NOTE:- Pressing the air drill excessively will cause the rivet to turn and result in the rivet not being drilled.
- Do not pry the rivet with the air drill. This may cause damage to the installation hole of the rivet or the drill bit.
- Wear protective glasses.
- Detach the clip and remove the front door rear window frame LH.
HINT:
Do not damage the vehicle body with the front door rear window frame LH.
- REMOVE FRONT DOOR UPPER WINDOW FRAME MOULDING LH
Refer to PROCEDURE - Step 23
- REMOVE FRONT DOOR FRONT WINDOW FRAME MOULDING LH
Refer to PROCEDURE - Step 25
- REMOVE FRONT DOOR WINDOW REGULATOR ASSEMBLY LH
- Disconnect the connector.
Nut Connector - Remove the 6 nuts and the front door window regulator assembly LH.NOTE:
Do not damage the front door panel assembly with the front door window regulator assembly LH.
HINT:
When removing the front door window regulator assembly LH, pull it out from the service hole as shown in the illustration.
Remove in this Direction
- Disconnect the connector.
- REMOVE FRONT DOOR OUTSIDE HANDLE ASSEMBLY LH
- Using a thin-bladed screwdriver with its tip wrapped with protective tape, detach the claw and open the connector cover as shown in the illustration.
Remove in this Direction Protective Tape - Using a screwdriver with its tip wrapped with protective tape, detach the claw of the connector and disconnect the connector and connector cover as shown in the illustration.
Protective Tape - Detach the holder as shown in the illustration.
*1 Holder Remove in this Direction - Remove the front door outside handle assembly LH in the direction of the arrow shown in the illustration.
Remove in this Direction
- Using a thin-bladed screwdriver with its tip wrapped with protective tape, detach the claw and open the connector cover as shown in the illustration.
- REMOVE FRONT DOOR LOCK CYLINDER ASSEMBLY LH (for Driver Side)
- REMOVE FRONT DOOR OUTSIDE HANDLE COVER RH (for Front Passenger Side)
- REMOVE FRONT DOOR FRONT OUTSIDE HANDLE PAD
- REMOVE FRONT DOOR REAR OUTSIDE HANDLE PAD
- REMOVE FRONT DOOR LOCK OPEN ROD LH
- REMOVE FRONT DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY LH
- Using a T30 "TORX" socket wrench, loosen the screw.
*A Inside *B Outside - Detach the claw and remove the front door outside handle frame sub-assembly LH together with the wire harness as shown in the illustration.
- Disconnect the wire harness clamp and guide and remove the front door outside handle frame sub-assembly LH.
- Using a T30 "TORX" socket wrench, loosen the screw.
- REMOVE FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH
Refer to PROCEDURE - Step 37
- REMOVE FRONT DOOR LOCK COVER SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 38
- REMOVE FRONT DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY LH
Refer to PROCEDURE - Step 39
- REMOVE FRONT DOOR INSIDE LOCKING CABLE ASSEMBLY LH
Refer to PROCEDURE - Step 40
- REMOVE FRONT DOOR CHECK ASSEMBLY LH
- REMOVE FRONT DOOR NO. 4 WEATHERSTRIP LH
- REMOVE FRONT DOOR PANEL CUSHION
- REMOVE FRONT DOOR WEATHERSTRIP LH
