Removal [10/2017 - 10/2020]: Procedure

  1. REMOVE FRONT DOOR TRIM UPPER COVER LH

    Refer to PROCEDURE - Step 4 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 4 [09/2018 - 10/2020]

  2. REMOVE FRONT DOOR ARMREST COVER LH

    Refer to PROCEDURE - Step 5 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 5 [09/2018 - 10/2020]

  3. REMOVE FRONT DOOR NO. 2 ARMREST COVER LH

    Refer to PROCEDURE - Step 6 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 6 [09/2018 - 10/2020]

  4. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 7 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 7 [09/2018 - 10/2020]

  5. REMOVE OUTER MIRROR INSTALL HOLE COVER LH
    1. GTY783069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Detach the clamp.

    2. Remove the 2 screws.
    3. Detach the claw and remove the outer mirror install hole cover LH.
  6. REMOVE FRONT MULTIPLEX NETWORK DOOR ECU LH

    Refer to PROCEDURE - Step 25 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 25 [09/2018 - 10/2020]

  7. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY LH
    1. Detach the clamp.
      GTY792231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Panoramic View Monitor System
    2. w/ Panoramic View Monitor System:
      1. Disconnect the connector.
    3. Remove the 2 hole plugs.
      GTY807298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

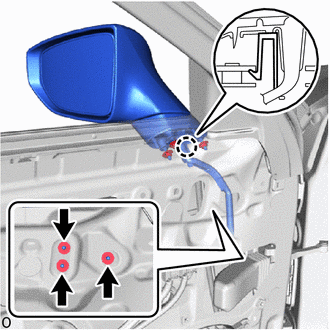

    4. Remove the 3 nuts.
      GTY807297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Hold the outer rear view mirror assembly LH with one hand so that it does not drop.

    5. Detach the claw and remove the outer rear view mirror assembly LH.
