Removal [09/2015 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Refer to PRECAUTION [09/2015 - ] ).

  2. REMOVE UPPER RADIATOR SUPPORT SEAL

    Refer to PROCEDURE - Step 3

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - 08/2019] , or refer to INITIALIZATION [08/2019 - ] ).

  4. REMOVE INSTRUMENT SIDE PANEL RH

    Refer to PROCEDURE - Step 25

  5. REMOVE INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 13

  6. REMOVE LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY RH

    Refer to PROCEDURE - Step 2

  7. REMOVE LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 1

  8. REMOVE NO. 1 SWITCH HOLE BASE

    Refer to PROCEDURE - Step 14

  9. REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 15

  10. REMOVE INSTRUMENT PANEL MOULDING SUB-ASSEMBLY

    Refer to PROCEDURE - Step 26

  11. REMOVE MULTI-MEDIA MODULE RECEIVER ASSEMBLY WITH BRACKET

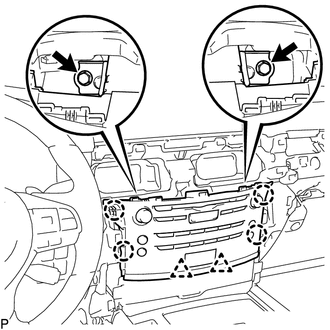

    1. Remove the 2 bolts.
      GTY679273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the multi-media module receiver assembly to detach the 4 claws and 2 clips on the backside of the multi-media module receiver assembly with bracket.
    3. Disconnect the connectors and remove the multi-media module receiver assembly with bracket.
  12. REMOVE NO. 1 RADIO BRACKET

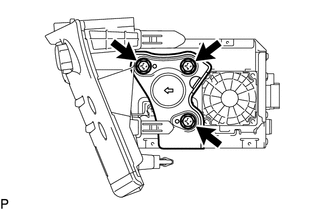

    1. Remove the 3 bolts and No. 1 radio bracket.
      GTY677428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE NO. 2 RADIO BRACKET

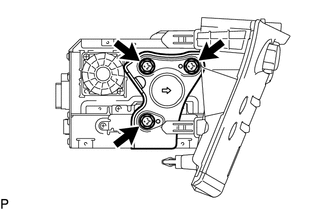

    1. Remove the 3 bolts and No. 2 radio bracket.
      GTY634889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
