Removal [09/2015 - ]: Procedure

  1. REMOVE FRONT CENTER FLOOR COVER

    Refer to PROCEDURE - Step 12

  2. REMOVE NO. 2 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 13

  3. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 7

  4. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

    Refer to PROCEDURE - Step 8

  5. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 6

  6. REMOVE FRONT SUSPENSION MEMBER PROTECTOR LOWER

    Refer to PROCEDURE - Step 17

  7. DRAIN ENGINE OIL

    See step  1

  8. REMOVE ENGINE OIL LEVEL SENSOR
    1. Disconnect the engine oil level sensor connector.
      GTY685912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts.

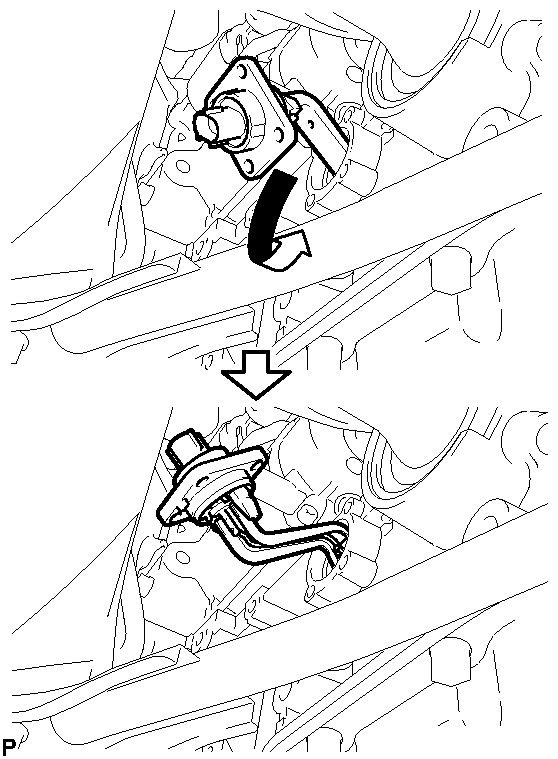

    3. Rotate the engine oil level sensor 180° and remove it.
      GTY132627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Cut off the gasket as shown in the illustration.
      GTY634386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the gasket from the oil level sensor.

      HINT:

      After cutting away the parts of the gasket shown in the illustration, remove only the outer part of the gasket.
