Removal [09/2015 - ]: Procedure

Refer to PROCEDURE - Step 6

Refer to PROCEDURE - Step 7

Refer to PROCEDURE - Step 2

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 4 clips and cool air intake duct seal.

See step  1

HINT:

Use the same procedure described for the LH side.

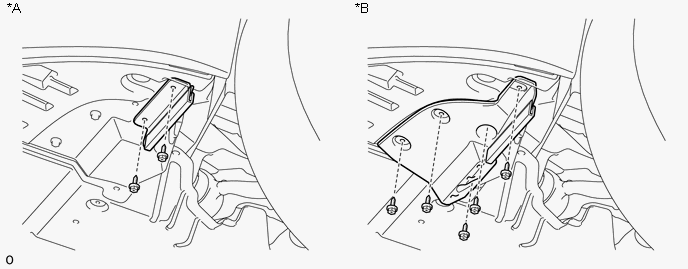

1. for 2WD:

   Remove the 2 screws and front wheel opening extension pad LH.

2. for AWD:

   Remove the 5 screws and front wheel opening extension pad LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *A

   for 2WD

   *B

   for AWD

HINT:

Use the same procedure described for the LH side.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a screwdriver, turn the 2 pin hold clips 90° and remove the 2 pin hold clips.
2. Partially remove the front fender liner LH.

   HINT:

   It is not necessary to fully remove the front fender liner. Partially remove it so that the bumper assembly can be removed later.

HINT:

Use the same procedure described for the LH side.

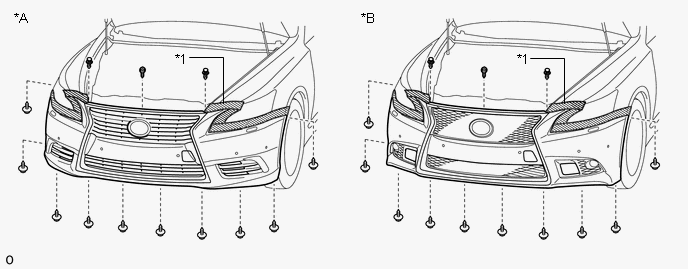

1. Put protective tape around the front bumper cover.
2. Remove the 11 screws and 2 clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *A	except Sport Package	*B	for Sport Package
   *1	Protective Tape	-	-

3. Remove the front bumper seal bracket.

   HINT:

   Use the same procedure for the RH side and LH side.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	Protective Tape

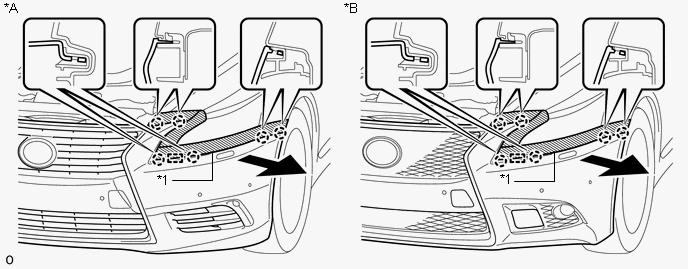

4. Detach the 6 claws and guide and disconnect the front bumper cover as shown in the illustration.

   HINT:

   Use the same procedure for the RH side and LH side.

5. w/ Headlight Cleaner System:

   Disconnect the headlight cleaner hose.

6. Disconnect the No. 4 engine room wire connector.
7. Disconnect the 2 fog light connectors and remove the front bumper cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *A	except Sport Package	*B	for Sport Package
   *1	Protective Tape	-	-

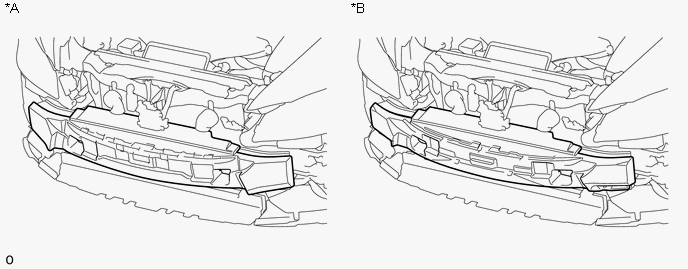

1. Remove the front bumper energy absorber.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *A

   except Sport Package

   *B

   for Sport Package

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Detach the 2 claws and remove the front bumper reinforcement extension LH.

HINT:

Use the same procedure described for the LH side.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Detach the clamp and remove the cooler thermistor.
2. w/ Air Suspension:

   Remove the height control filter from the reinforcement.

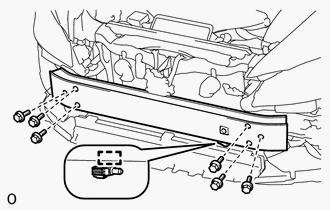

3. Remove the 6 bolts and reinforcement.

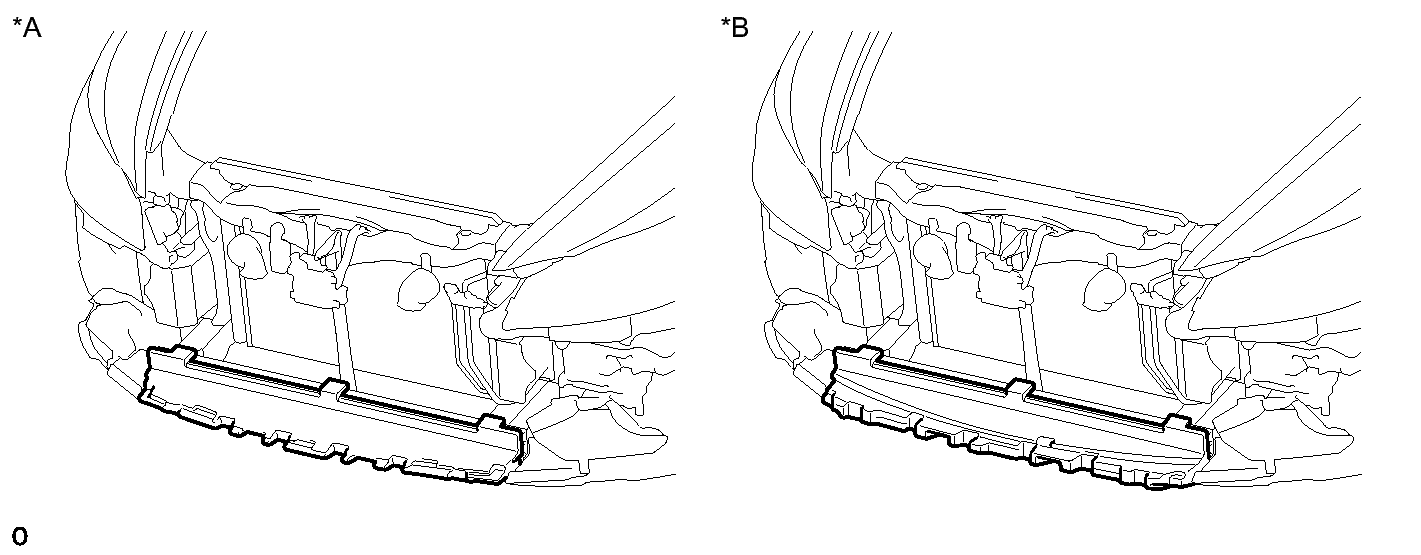

1. Remove the front bumper lower absorber.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *A

   except Sport Package

   *B

   for Sport Package

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 clips.
2. Remove the 4 bolts and front suspension lower crossmember.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

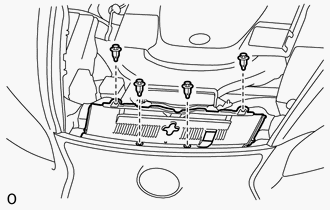

1. Remove the 3 clips and radiator support opening cover.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

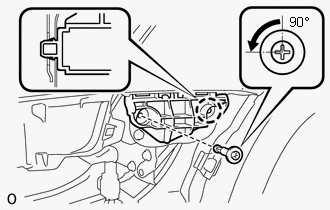

1. Using a screwdriver, turn the clip 90° and remove the clip.
2. Detach the claw and remove the front bumper side retainer LH.

HINT:

Use the same procedure described for the LH side.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the bolt.
2. Detach the claw and remove the front bumper end retainer LH.

HINT:

Use the same procedure described for the LH side.
