Removal [09/2015 - ]: Procedure

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. REMOVE AIR CLEANER INLET COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  3. REMOVE ENGINE ROOM SIDE COVER RH

    Refer to PROCEDURE - Step 7

  4. REMOVE NO. 1 AIR CLEANER INLET

    Refer to PROCEDURE - Step 3

  5. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH (for AWD)

    Refer to PROCEDURE - Step 7

  6. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH (for AWD)

    Refer to PROCEDURE - Step 8

  7. REMOVE NO. 1 ENGINE UNDER COVER

    See step  6

  8. DRAIN ENGINE COOLANT

    See step  7

  9. REMOVE RADIATOR RESERVOIR ASSEMBLY

    See step  9

  10. REMOVE INTAKE AIR CONNECTOR PIPE

    Refer to PROCEDURE - Step 9

  11. REMOVE V-RIBBED BELT

    Refer to PROCEDURE - Step 5

  12. DISCONNECT ENGINE OIL LEVEL DIPSTICK GUIDE (for 2WD)
    1. Remove the bolt and disconnect the dipstick guide.
      GTY685898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. DISCONNECT NO. 2 RADIATOR HOSE
  14. DISCONNECT NO. 5 WATER BY-PASS HOSE

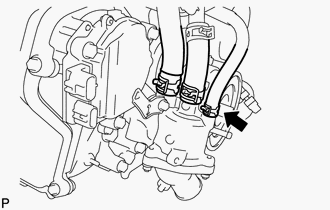

    1. Using needle-nose pliers, grip the claws of the clip and slide the clip to disconnect the No. 5 water by-pass hose.
      GTY651506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. DISCONNECT WATER INLET HOSE

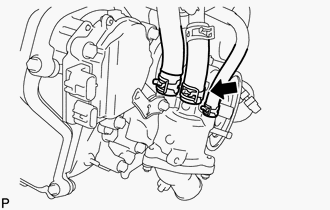

    1. Using needle-nose pliers, grip the claws of the clip and slide the clip to disconnect the water inlet hose.
      GTY651507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. DISCONNECT NO. 3 WATER BY-PASS HOSE

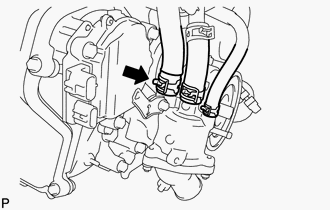

    1. Using needle-nose pliers, grip the claws of the clip and slide the clip to disconnect the No. 3 water by-pass hose.
      GTY651510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE WATER INLET HOUSING
    1. Remove the 3 bolts, water inlet housing and gasket.
      GTY512208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE WATER PUMP PULLEY
    1. Using SST, hold the water pump pulley.
      GTY627863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09960-10010
        1. 09962-01000
        2. 09963-01000
    2. Remove the 4 bolts and water pump pulley.
  19. REMOVE ENGINE WATER PUMP ASSEMBLY

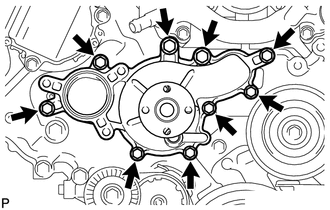

    1. Remove the 9 bolts, engine water pump and gasket.
      GTY103206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
