Installation [09/2015 - ]: Procedure

  1. INSTALL COMBINATION METER ASSEMBLY

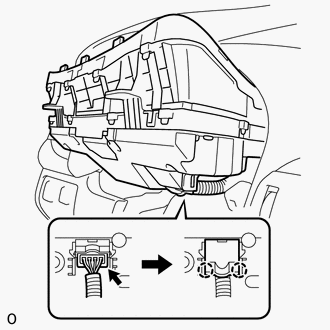

    1. Connect the connector and attach the 2 claws to close the connector cover.
      GTY406639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the combination meter assembly with the 4 screws.
  2. INSTALL STEERING COLUMN COVER (w/o Driver Monitor Camera)

    Refer to PROCEDURE - Step 9

  3. INSTALL STEERING COLUMN COVER (w/ Driver Monitor Camera)

    Refer to PROCEDURE - Step 10

  4. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    1. Connect the 2 connectors.
    2. Attach the 6 clips to install the No. 2 instrument cluster finish panel sub-assembly.
      GTY406641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the 2 clips.
  5. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 28

  6. INSTALL INSTRUMENT PANEL ORNAMENT

    Refer to PROCEDURE - Step 29

  7. INSTALL INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 30

  8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - ] ).

  9. ENABLE AUTOAWAY/RETURN FUNCTION
    1. Restore the autoaway/return function setting to the previous condition by changing the customize parameter (Refer to CUSTOMIZE PARAMETERS [09/2015 - ] ).
  10. INSTALL COWL TOP VENTILATOR LOUVER RH

    Refer to PROCEDURE - Step 15
