Disassembly [09/2015 - ]: Procedure

  1. REMOVE NO. 1 COMBINATION METER BRACKET
    GTY407447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the No. 1 combination meter bracket.
  2. REMOVE NO. 1 SIDE DEFROSTER NOZZLE DUCT
    GTY407550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the screw.
    2. Detach the claw and remove the No. 1 side defroster nozzle duct.
  3. REMOVE NO. 2 SIDE DEFROSTER NOZZLE DUCT

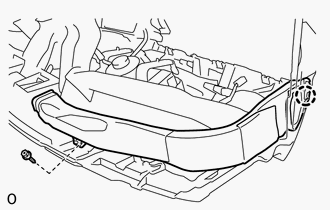

    GTY418510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the screw.
    2. Detach the claw and remove the No. 2 side defroster nozzle duct.
  4. REMOVE NO. 1 HEATER TO REGISTER DUCT

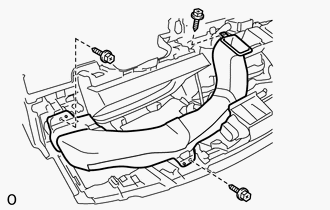

    GTY407549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 3 screws and No. 1 heater to register duct.
  5. REMOVE NO. 3 HEATER TO REGISTER DUCT

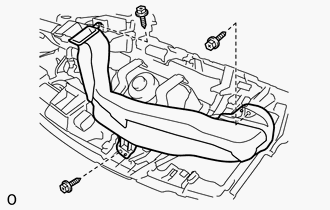

    GTY407547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 3 screws and No. 3 heater to register duct.
  6. REMOVE DEFROSTER NOZZLE ASSEMBLY

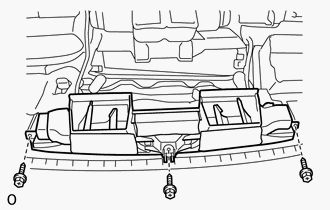

    GTY407546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 3 screws and defroster nozzle assembly.
  7. REMOVE NO. 2 HEATER TO REGISTER DUCT
    GTY403259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. w/ Ion Generator:
      1. Disconnect the hose from the ion generator sub-assembly.
        TEXT IN ILLUSTRATION

        *1 Hose
      2. Remove the 2 screws and No. 2 heater to register duct.
    2. w/o Ion Generator:

      Remove the 2 screws and No. 2 heater to register duct.

      GTY407539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE ION GENERATOR SUBASSEMBLY (w/ Ion Generator)

    Refer to PROCEDURE - Step 2

  9. REMOVE NO. 2 INSTRUMENT PANEL WIRE

    Refer to PROCEDURE - Step 8

  10. REMOVE FRONT PASSENGER AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 9

  11. REMOVE NAVIGATION ANTENNA ASSEMBLY

    Refer to PROCEDURE - Step 8

  12. REMOVE AUTOMATIC LIGHT CONTROL SENSOR
    1. Disconnect the connector.
    2. Detach the 2 claws and remove the automatic light control sensor.
      GTY121853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE NO. 2 INSTRUMENT PANEL WIRE
    1. w/o Ion Generator:

      Detach the wire harness clamp and remove the No. 2 instrument panel wire.

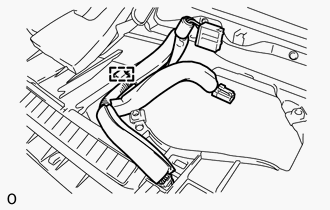

      GTY407538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Ion Generator:

      Detach the 5 wire harness clamps and remove the No. 2 instrument panel wire.

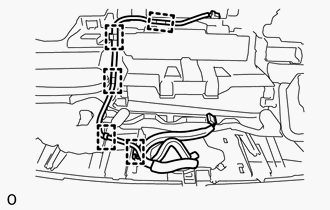

      GTY415064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE NO. 1 INSTRUMENT PANEL PIN

    HINT:

    Use the same procedure to remove the No. 1 instrument panel pin on the other side.

    1. Remove the screw and No. 1 instrument panel pin.
      GTY407540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE NO. 1 METER HOOD RETAINER
    GTY412600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 2 screws and 2 No. 1 meter hood retainers.
  16. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY

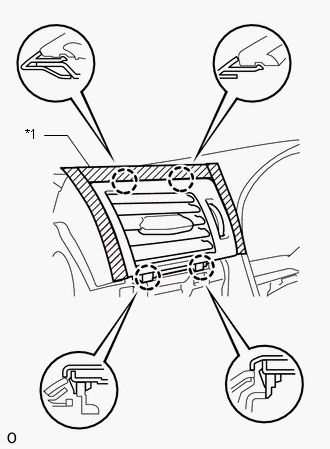

    GTY399988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Apply protective tape as shown in the illustration.
      TEXT IN ILLUSTRATION

      *1 Protective Tape
    2. Detach the 4 claws and remove the No. 1 instrument panel register assembly.
  17. REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY

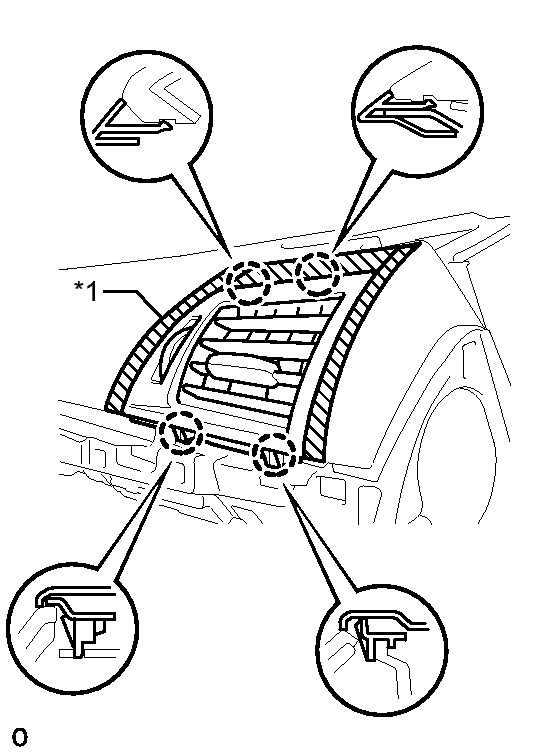

    GTY415022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Apply protective tape as shown in the illustration.
      TEXT IN ILLUSTRATION

      *1 Protective Tape
    2. Detach the 4 claws and remove the No. 2 instrument panel register assembly.
