Removal [09/2015 - ]: Procedure

  1. PRECAUTION
    WARNING:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Refer to PRECAUTION [09/2015 - ] ).

  2. REMOVE COWL TOP VENTILATOR LOUVER RH

    Refer to PROCEDURE - Step 1

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - ] ).

  4. REMOVE INSTRUMENT PANEL SAFETY PAD SUBASSEMBLY

    (Refer to REMOVAL [09/2015 - ] )

  5. REMOVE NO. 2 SIDE DEFROSTER NOZZLE DUCT

    Refer to PROCEDURE - Step 3

  6. REMOVE DEFROSTER NOZZLE ASSEMBLY

    Refer to PROCEDURE - Step 6

  7. REMOVE NO. 3 HEATER TO REGISTER DUCT

    Refer to PROCEDURE - Step 5

  8. REMOVE NAVIGATION ANTENNA ASSEMBLY

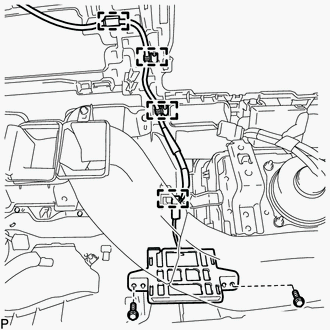

    GTY416856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 4 clamps.
    2. Remove the 2 screws and navigation antenna assembly.
