Removal [09/2015 - ]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read Precaution thoroughly before servicing (Refer to PRECAUTION [09/2015 - ] ).

    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Refer to PRECAUTION [09/2015 - ] ).

  2. REMOVE COWL TOP VENTILATOR LOUVER RH

    Refer to PROCEDURE - Step 2

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - ] ).

  4. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    (Refer to REMOVAL [09/2015 - ] )

  5. REMOVE NO. 2 SIDE DEFROSTER NOZZLE DUCT

    Refer to PROCEDURE - Step 3

  6. REMOVE DEFROSTER NOZZLE ASSEMBLY

    Refer to PROCEDURE - Step 6

  7. REMOVE NO. 3 HEATER TO REGISTER DUCT

    Refer to PROCEDURE - Step 5

  8. REMOVE NO. 2 INSTRUMENT PANEL WIRE
    1. Detach the connector clamp.
      GTY654441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver release the airbag connector lock.
    3. Using a screwdriver, disconnect the 2 airbag connectors to remove the No. 2 instrument panel wire from the front passenger airbag assembly.
      NOTE:

      When disconnecting airbag connector, take care not to damage the airbag wire harness.

  9. REMOVE FRONT PASSENGER AIRBAG ASSEMBLY
    WARNING:

    When storing the front passenger airbag assembly, keep the airbag deployment side facing upward.

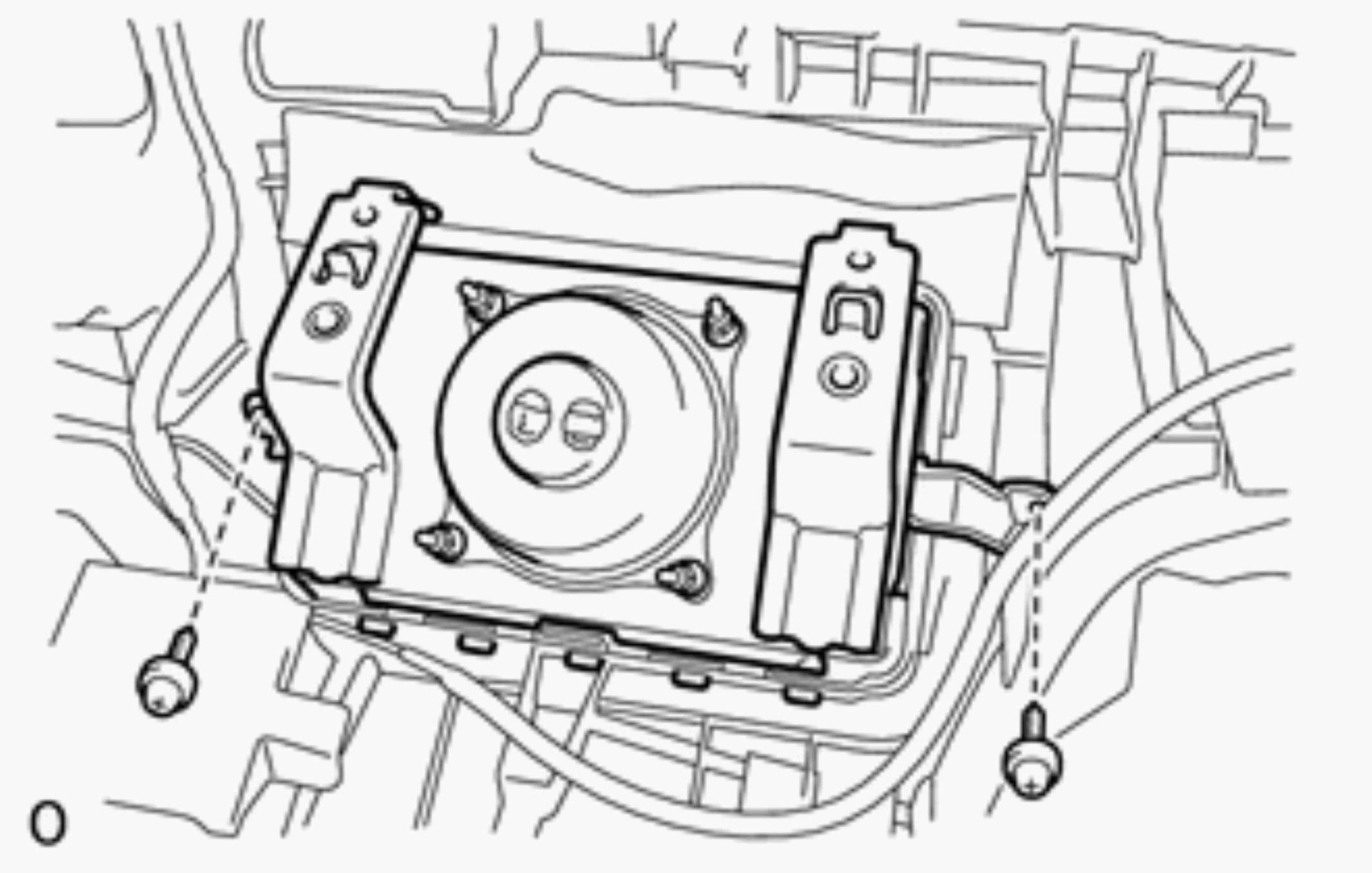

    1. Remove the 2 screws.
      GTY644240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 5 hooks (A).

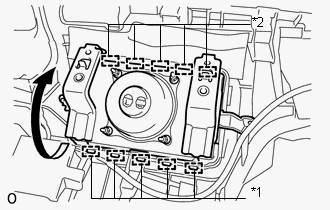

      GTY650365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Hook (A)
      *2 Hook (B)
    3. Detach the 5 hooks (B) to remove the front passenger airbag assembly from the instrument panel safety pad assembly as shown in the illustration.
