DTC P0985: Shift Solenoid "E" Control Circuit Low (Shift Solenoid Valve SR); DTC P0986: Shift Solenoid "E" Control Circuit High (Shift Solenoid Valve SR) [04/2013 - 08/2015]: Procedure

1. Disconnect the transmission wire connector from the transmission.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Component without harness connected (Transmission Wire)

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   6 (SR) - Body ground	20°C (68°F)	11 to 15 Ω

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  3

Result:

OK

See step  2

1. Connect the transmission connector to the transmission.
2. Disconnect the A77 connector from the ECM.

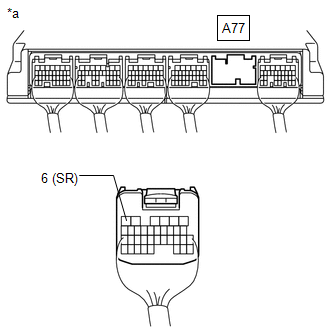

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Rear view of wire harness connector (to ECM)

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A77-6 (SR) - Body ground	20°C (68°F)	11 to 15 Ω

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE ECM. Refer to  COMPONENTS [04/2013 - 08/2015]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

1. Remove the shift solenoid valve SR.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Shift Solenoid Valve SR

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   Solenoid Connector (SR) - Solenoid Body (SR)	20°C (68°F)	11 to 15 Ω

3. Connect the positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body.

   OK

   The solenoid makes an operating sound.

   Result

   Proceed to
   OK
   NG

Result:

OK

REPAIR OR REPLACE TRANSMISSION WIRE. Refer to  COMPONENTS [04/2013 - 08/2015]

Result:

NG

REPLACE SHIFT SOLENOID VALVE SR. Refer to  COMPONENTS [04/2013 - 08/2015]
